Home / Mobile Trolleys / Chief LVM2X2U Fusion 2x2 Micro-Adjustable Large Freestanding Video Wall Cart - Landscape, 4 Displays
Chief

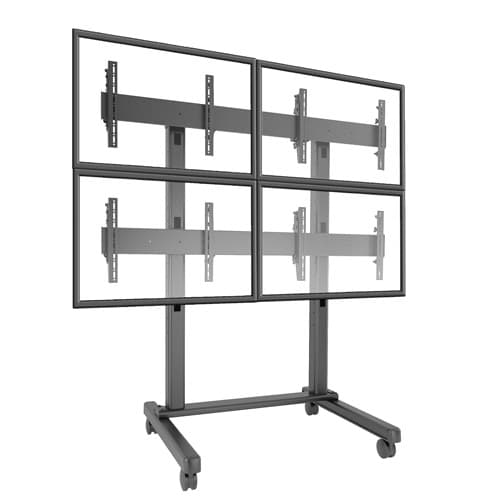

Chief LVM2X2U Fusion 2x2 Micro-Adjustable Large Freestanding Video Wall Cart - Landscape, 4 Displays

£3,933.60inc. VAT
£3,278.00 ex. VAT
Out of stock
1

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →
  • Sourced through UK distribution
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Call 01342 580255
Return within 14 days
Installation services availablePurchase orders: education customers only
10 Years Warranty Included
Key specifications
Display centre height range (bottom to top row)609.6 - 1829 mm
Depth102.6 cm
Height204.5 cm
Lateral shiftYes
Manual height adjustmentMicro-adjustment up to 0.75" (19 mm) per screen
Overall dimensions (H x W x D)2045 x 1842 x 1026 mm
Plumb adjustmentMicro-adjustment up to 0.75" (19 mm)
Shipping weight99.3 kg
All 19 specifications

Description

Chief's Fusion large freestanding carts let an integrator stand a full video wall up in a room that has no suitable wall, and roll it away again afterwards. The 2x2 landscape array carries four displays of 42" to 50", each supported to 56.7 kg, on a caster base with one locking caster per leg.

Also in this range:LVM3X3U LVM3X2U Full specifications Datasheet Compare alternatives

Alignment is the point of the Fusion system. Every display position offers independent height, plumb and lateral shift adjustment, with micro-adjustment of up to 19 mm per screen, so a fitter can close the seams across the whole array without dismounting anything. Cable management is integrated into the columns.

Assembled the cart measures 2045 mm high by 1842 mm wide by 1026 mm deep including the caster base, and stands displays with their centres between 610 mm and 1829 mm from the floor. Chief's optional FCA776 levelling feet convert it to a semi-permanent installation.

Supplied by TopAV. Manufacturer part number LVM2X2U.

Call 01342 580255

Key features

2x2 landscape array

Holds four displays in two columns of two, in landscape orientation.

Weight capacity

56.7 kg per display position.

Micro-adjustment

Independent height, plumb and lateral shift, with up to 19 mm of micro-adjustment per screen.

Mobile base

Caster base with one locking caster per leg; optional FCA776 levelling feet for fixed installs.

Cable management

Cable routing integrated into the vertical columns.

Certification

UL Listed and TAA compliant.

Technical specifications

Display
Display centre height range (bottom to top row)609.6 - 1829 mm
Typical screen size1067 - 1270 mm
Weight capacity per display56.7 kg
Number of displays4
Power & Physical
Depth102.6 cm
Height204.5 cm
Manual height adjustmentMicro-adjustment up to 0.75" (19 mm) per screen
Overall dimensions (H x W x D)2045 x 1842 x 1026 mm
Shipping weight99.3 kg
Width184.2 cm
ColourBlack
Certifications & Warranty
CertificationsTAA, UL Listed
General
Lateral shiftYes
Plumb adjustmentMicro-adjustment up to 0.75" (19 mm)
AdjustabilityHeight Adjustable, Micro-Adjustable
ApplicationCart
Array configuration2x2
OrientationLandscape
TAA compliantYes
Call 01342 580255

Documents

LVM Series Installation Manual (PDF) from Legrand AV - the installation manual covering the Chief LVM2X2U. Legrand does not publish a cutsheet for this SKU.
