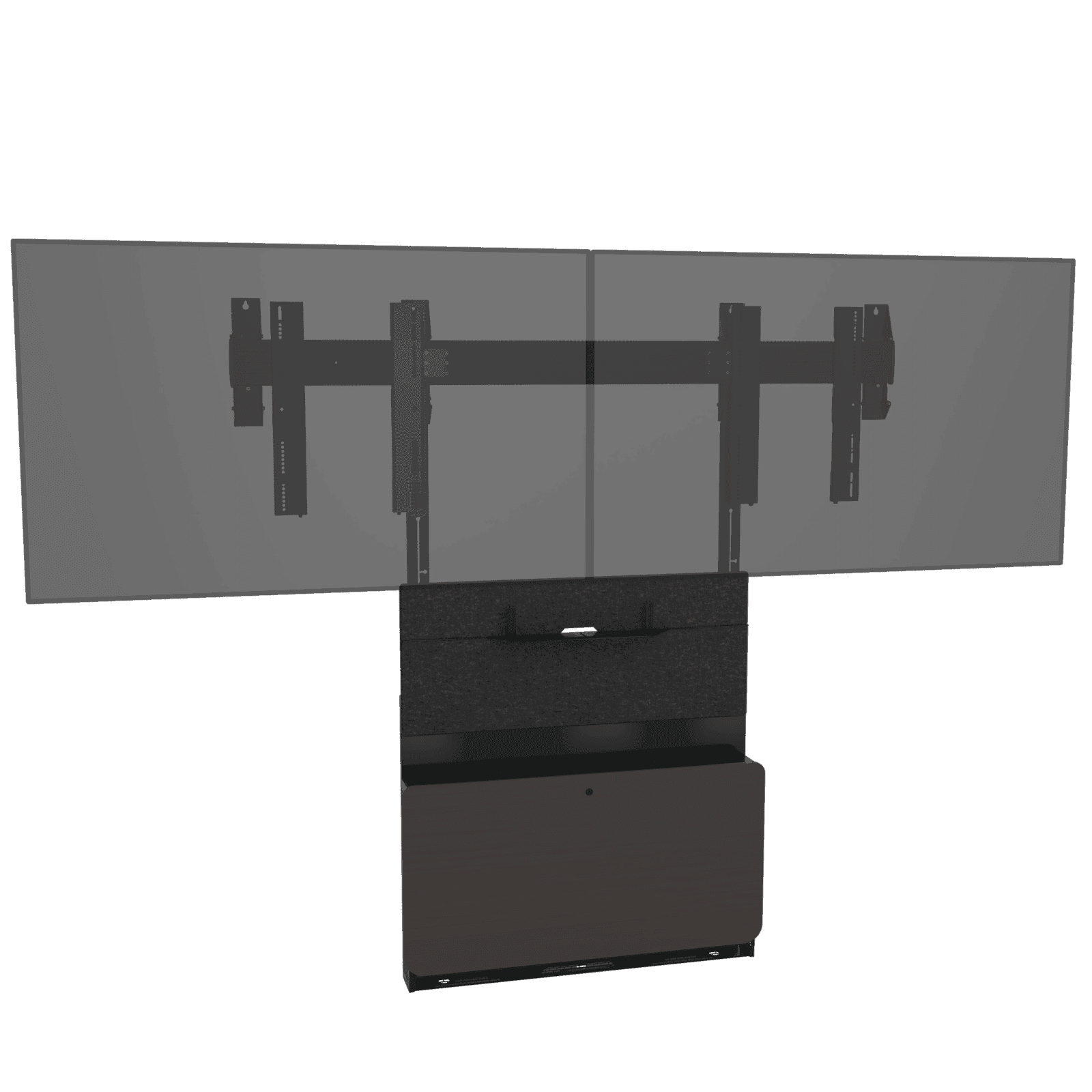

Chief TFSMHB Forum Floor Support Mount and Frame - Black with Asian Night HPL Locking Wood Door Kit
55-98"
£2,858.40inc. VAT
Out of stock
Home / Floor-to-Wall Stands / Chief LBM1X2UP Fusion 1x2 Micro-Adjustable Large Bolt-Down Freestanding Video Wall Stand - Portrait
Chief
Chief LBM1X2UP Fusion 1x2 Micro-Adjustable Large Bolt-Down Freestanding Video Wall Stand - Portrait
£2,924.40inc. VAT
£2,437.00 ex. VAT
Out of stock
1
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
10 Years Warranty Included
Key specifications
Array configuration1x2
Number of displays2
OrientationPortrait
ApplicationBolt-down freestanding
ColourBlack
Solution typeUniversal
Typical screen size42-80 in
Weight capacity56.7 kg
Description
The Chief LBM1X2UP is the portrait version of Chief's large bolt-down freestanding video wall stand. It carries two displays mounted in portrait, one above the other, on twin uprights bolted to the floor through base plates - a common arrangement for wayfinding, retail promotions and digital directories where a full-height column of content is wanted.
Because the panels are turned through 90 degrees the assembly stands considerably taller than the landscape LBM1X2U: 2145 mm high against 1689 mm, with the top display centre reaching 2093 mm. Interface brackets accept VESA patterns from 100 x 100 mm up to 800 x 900 mm, cover screens in the 42 to 80 in range and are rated to 125 lb (56.7 kg) per display position.
Height micro-adjusts by up to 19 mm per screen and plumb by up to 19 mm, with lateral shift available, so the seam between the two portrait panels can be closed after the stand is bolted down. Overall dimensions are 2145 x 914 x 191 mm; the stand is TAA compliant and finished in black.
Supplied by TopAV. Manufacturer part number LBM1X2UP.
Key features
Two stacked portrait displays
1 wide by 2 high portrait array on floor-fixed uprights, no wall required.
56.7 kg per display position
Rated weight capacity of 125 lb (56.7 kg) per display.
42-80 in screens
Typical screen size range 42 in to 80 in (1067 mm to 2032 mm).
Portrait VESA range
Accepts VESA patterns from 100 x 100 mm up to 800 x 900 mm.
Full-height column
2145 mm overall height, with the upper display centre reaching 2093 mm from the floor.
Micro-adjustment and lateral shift
Height micro-adjusts up to 19 mm per screen, plumb up to 19 mm, with lateral shift for squaring the array.
Technical specifications
Display
Number of displays2
Typical screen size42-80 in
Display centre height range416 mm (lowest) - 2093 mm (highest)
Power & Physical
ColourBlack
Weight capacity56.7 kg
VESA mounting pattern100 x 100 mm - 800 x 900 mm
Overall dimensions2145 x 914 x 191 mm
Height214.5 cm
Width91.4 cm
Depth19.1 cm
Manual height adjustmentMicro-adjustment up to 19 mm per screen
Shipping weight86.2 kg
General
Array configuration1x2
OrientationPortrait
ApplicationBolt-down freestanding
Solution typeUniversal
Plumb adjustmentMicro-adjustment up to 19 mm
Lateral shiftYes
AdjustabilityMicro-adjustable
TAA compliantYes
Documents
Delivery & returns
Estimated delivery 14 Sept - 18 Sept. UK mainland delivery only. Some large or made-to-order items carry longer lead times, shown on the product page.
Unused items in original packaging can be returned within 14 days of delivery — see the returns policy for how business and consumer returns differ. Faulty items are covered under manufacturer warranty and by your statutory rights.
Bought in the UK, backed in the UK
This item is sourced through UK distribution and ships to you from within the UK, so the order never crosses a customs border.
The manufacturer warranty is honoured here in the UK. If something fails, you deal with us, not with an overseas seller in another time zone.
Our own UK-based engineers install, commission and support what we sell, and can attend site when a system needs hands on it.
Delivered within the UK mainland, so there is no import duty, customs charge or courier handling fee waiting for you on delivery.
Prices are in pounds sterling with proper UK VAT invoices, and purchase orders are accepted from approved education accounts: no currency conversion and no surprises at the door.
Payment & security
Pay securely by card. Education customers can apply for a 30-day purchase order account.
Schools, colleges, sixth forms, universities and multi-academy trusts can order on invoice, with no card payment required. Purchase orders and credit terms are for education customers only.
All transactions are processed over an encrypted, secure checkout.
Alternative products
Closest matches in this category on price and capability. Not sure which way to go? Our technical team will talk it through.
Chief

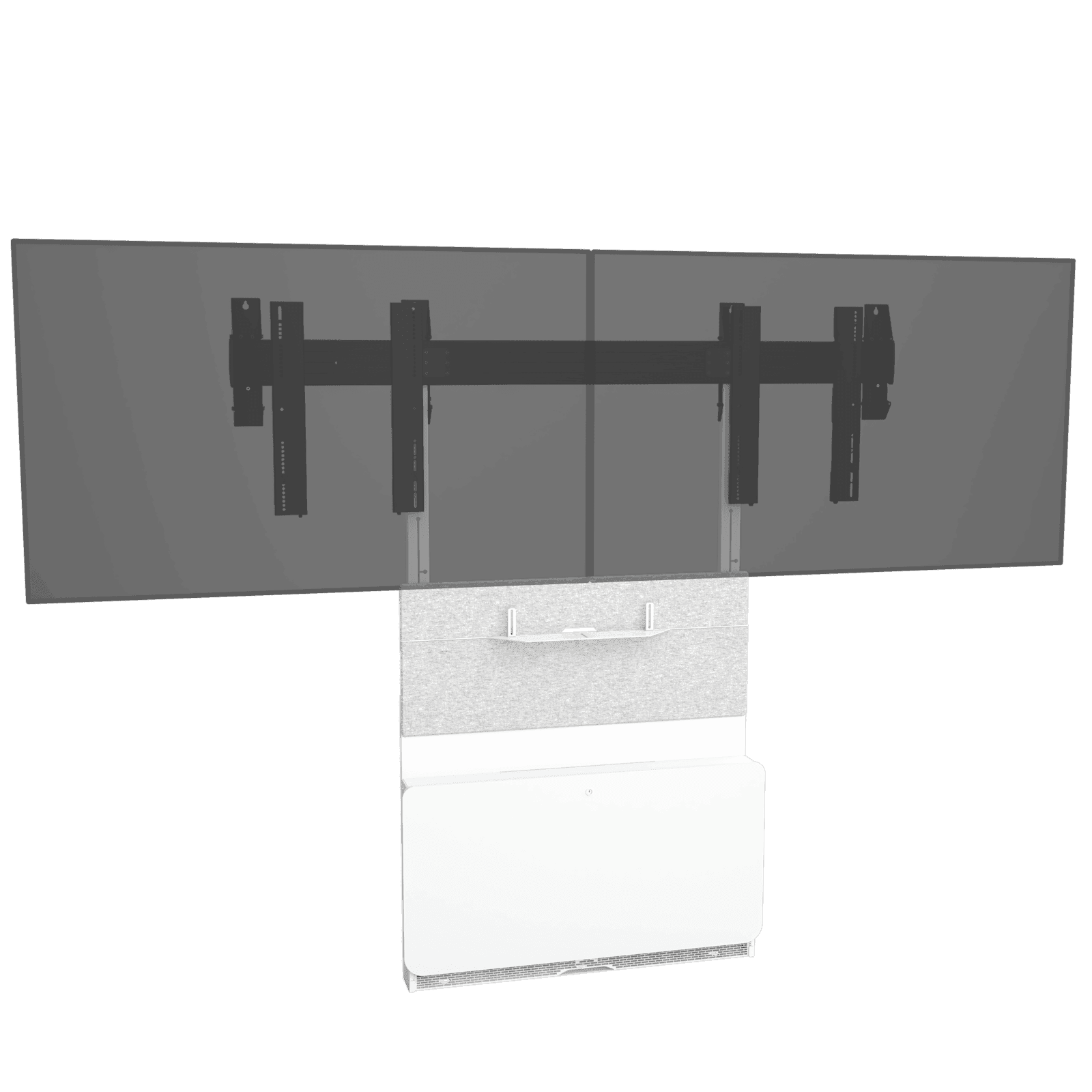

Chief TFSMHW Forum Floor Support Mount and Frame - White with Designer White HPL Locking Wood Door Kit
