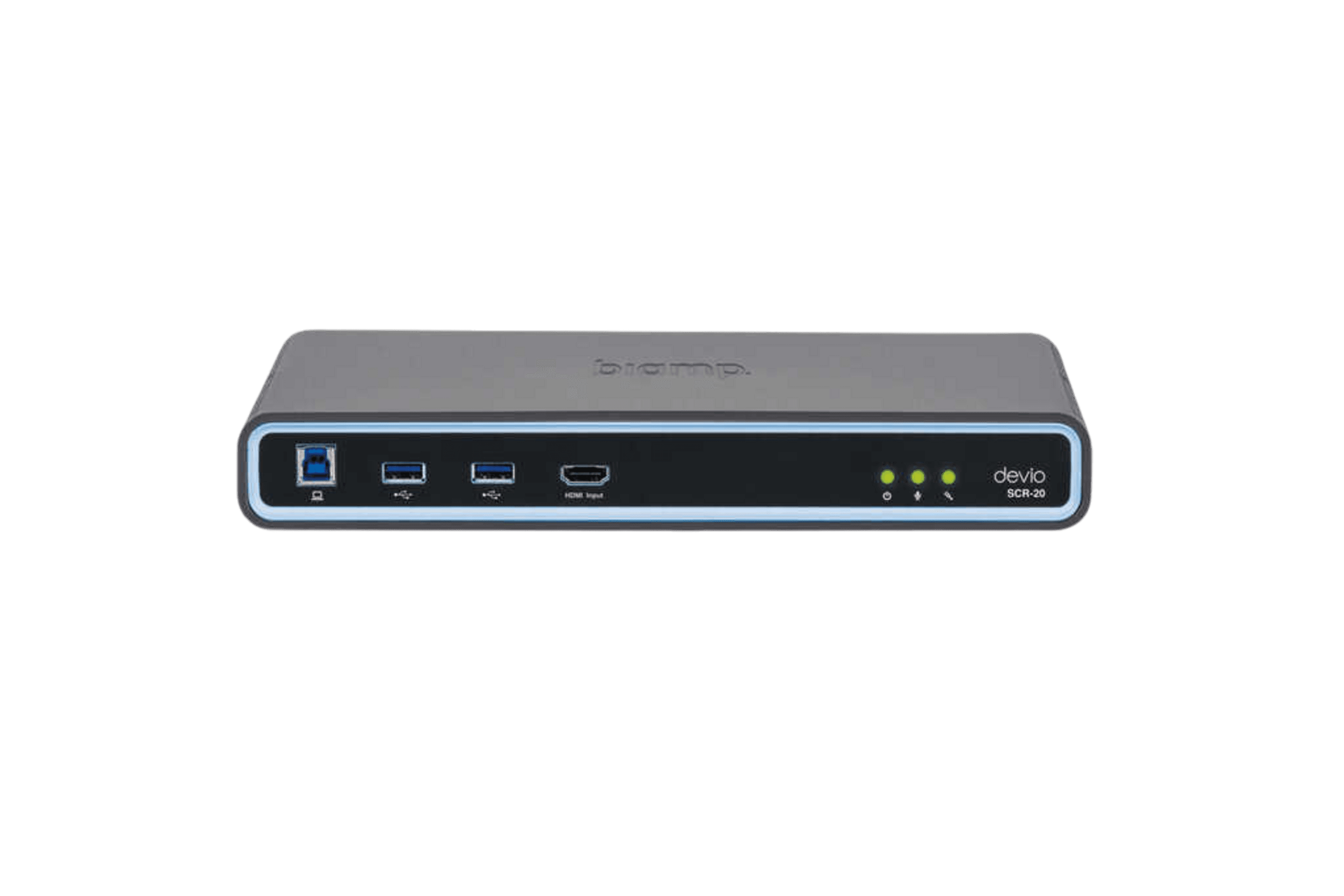

Biamp Devio SCR-20C White

Name: Biamp Devio SCR-20C White
Brand: Biamp
SKU: 930-00457-00015
Price: 3444.00 GBP
Availability: LimitedAvailability

£3,444.00inc. VAT

£2,870.00 ex. VAT

Low stock (1 left), order soon

Visa
Mastercard
American Express
PayPal

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

In UK stock, ships from the UK
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Call 01342 580255

Return within 14 days

Installation services available Purchase orders: education customers only

5 Years Warranty Included

Key specifications

Primary ApplicationConferencing

Height1.8 inches (46 mm)

Width11.2 inches (284 mm)

Depth6.9 inches (175 mm)

Weight2.0 lbs (0.9 kg)

Included AccessoriesThe SCR-20C White ships with one Devio SCR-20 hub and one white DCM-1 pendant microphone, with 360-degree coverage

Power24V DC 60W

AmplifierAmplifier: Number of Channels: 1 Continuous Power Output: (THD+N

All 23 specifications

Description

The Devio SCR-20C is a conferencing hub that provides users with exceptional audiovisual experiences when using web-based conferencing systems.

Also in this range:SCR-25C Full specifications Datasheet Compare alternatives

Intended for huddle rooms or small conference rooms, the Devio SCR-20 includes a white DCM-1 pendant microphone with Beamtracking technology to optimize the audio quality, allowing far end conference participants to experience the conversation naturally.

The Devio SCR-20 supports a variety of room designs for web-based conferencing including a BYOD approach or connection via a dedicated in-room PC. Devio works in concert with PCs running a variety of web-based conferencing solutions including Microsoft Teams, Zoom, Google Meet, Cisco Webex, BlueJeans and many more. For ease of network and device management, Devio can be monitored and managed remotely via SNMP or with the Devio System Administration Utility (SAU) software, and firmware updates can be scheduled and deployed to multiple Devio units as needed.

Certified for use with Microsoft Teams

Key features:

- Works in concert with PCs running web-based conferencing solutions, including Microsoft Skype™ for Business/Microsoft Teams, Zoom, BlueJeans, Google Meet, and many more

- Supports both Windows and Mac PCs, and uses standard audio drivers

- Supports driverless, pass-through HDMI connectivity to a single in-room display, or to two monitors with USB video using DisplayLink USB graphics technology (requires installation of DisplayLink driver on laptop; supports Windows 7, 8, 8.1, and 10)

- Auto Setup validates device connections, adjusts room levels, and sets speaker EQ to optimize audio quality

- Can be monitored and managed remotely via SNMP or with the Devio System Administration Utility (SAU)

- Firmware updates can be scheduled and deployed to multiple Devio units via the SAU

- Speaker connectivity options include HDMI audio, a built-in 20 watts amplifier, or RCA line out

- Includes a mounting bracket for under–the–table installation

- Ships with one tabletop or ceiling Beamtracking microphone with 360-degree coverage

- 5-year warranty

- Compliant with the US Trade Agreement Act (TAA)

Call 01342 580255

Key features

Works in concert with PCs running web-based conferencing

Works in concert with PCs running web-based conferencing solutions, including Microsoft Skype™ for Business/Microsoft Teams, Zoom, BlueJeans, Google Meet, and many more

Supports both Windows and Mac PCs, and uses standard audio drivers

Supports driverless, pass-through HDMI connectivity to a single

Supports driverless, pass-through HDMI connectivity to a single in-room display, or to two monitors with USB video using DisplayLink USB graphics technology (requires installation of DisplayLink driver on laptop; supports Windows 7, 8, 8.1, and 10)

Auto Setup validates device connections, adjusts room levels, and

Auto Setup validates device connections, adjusts room levels, and sets speaker EQ to optimize audio quality

Can be monitored and managed remotely via SNMP or with the Devio

Can be monitored and managed remotely via SNMP or with the Devio System Administration Utility (SAU)

Firmware updates can be scheduled and deployed to multiple Devio

Firmware updates can be scheduled and deployed to multiple Devio units via the SAU

Speaker connectivity options include HDMI audio, a built-in 20

Speaker connectivity options include HDMI audio, a built-in 20 watts amplifier, or RCA line out

Includes a mounting bracket for under–the–table installation

Technical specifications

Display

Front Panel Indicator(s)Mic Status Indicator: (Green/Red LED) Room Tuning Indicator: (Green/Red LED) Power Indicator: (Green/Red LED)

Supported Resolution640 x 480p (60 Hz), 720 x 480p (60 Hz), 720 x 576p (50 Hz), 1280 x 720p (50/60 Hz), 1920 x 1080p (50/60 Hz), *3840 x 2160p (30 Hz) *Supported on Output Port 1 only

Connectivity

USBUSB: Bit Depth: 24-bit

Network Connection(s)RJ-45 with Ethernet cable (Cat 5e and above)

Output Impedance(unbalanced): 100Ω

Audio

AudioAnalog Audio Output (RCA): Frequency Response (20 Hz - 20 kHz, FS): +0/-0.25 dB THD+N (20 Hz - 10 kHz, 20 kHz B/W, FS): < 0.005% Dynamic Range (THD+N < 0.005%): 107 dB, A-Weighted Output Impedance (unbalanced): 100Ω Maximum Output: +8.5 dBu Sampling Rate: 48 kHz D/A Converters: 24-bit

Power & Physical

Height1.8 inches (46 mm)

Width11.2 inches (284 mm)

Depth6.9 inches (175 mm)

Weight2.0 lbs (0.9 kg)

Certifications & Warranty

CertificationsCompliance: FCC Part 15B (USA) UL and C-UL listed (USA and Canada) CE Marked (Europe) RoHS Directive (Europe)

General

Primary ApplicationConferencing

Included AccessoriesThe SCR-20C White ships with one Devio SCR-20 hub and one white DCM-1 pendant microphone, with 360-degree coverage

Power24V DC 60W

AmplifierAmplifier: Number of Channels: 1 Continuous Power Output: (THD+N

TAA CompliantTAA Compliant

Operating Environment.

Ambient Operating Temperature Range32-104° F (0-40° C)

Humidity0-95% relative humidity (non-condensing)

Altitude0-6,600 ft (0-2000 m) MSL

Physical InterfacesHDMI: HDCP Support: 1.4 HDMI Audio Formats: 2ch L-PCM, 44.1 kHz/48 kHz, 16-bit

Sampling Rate48 kHz

D/A Converters24-bit

Call 01342 580255

Documents

Biamp Devio SCR-20C White datasheet
