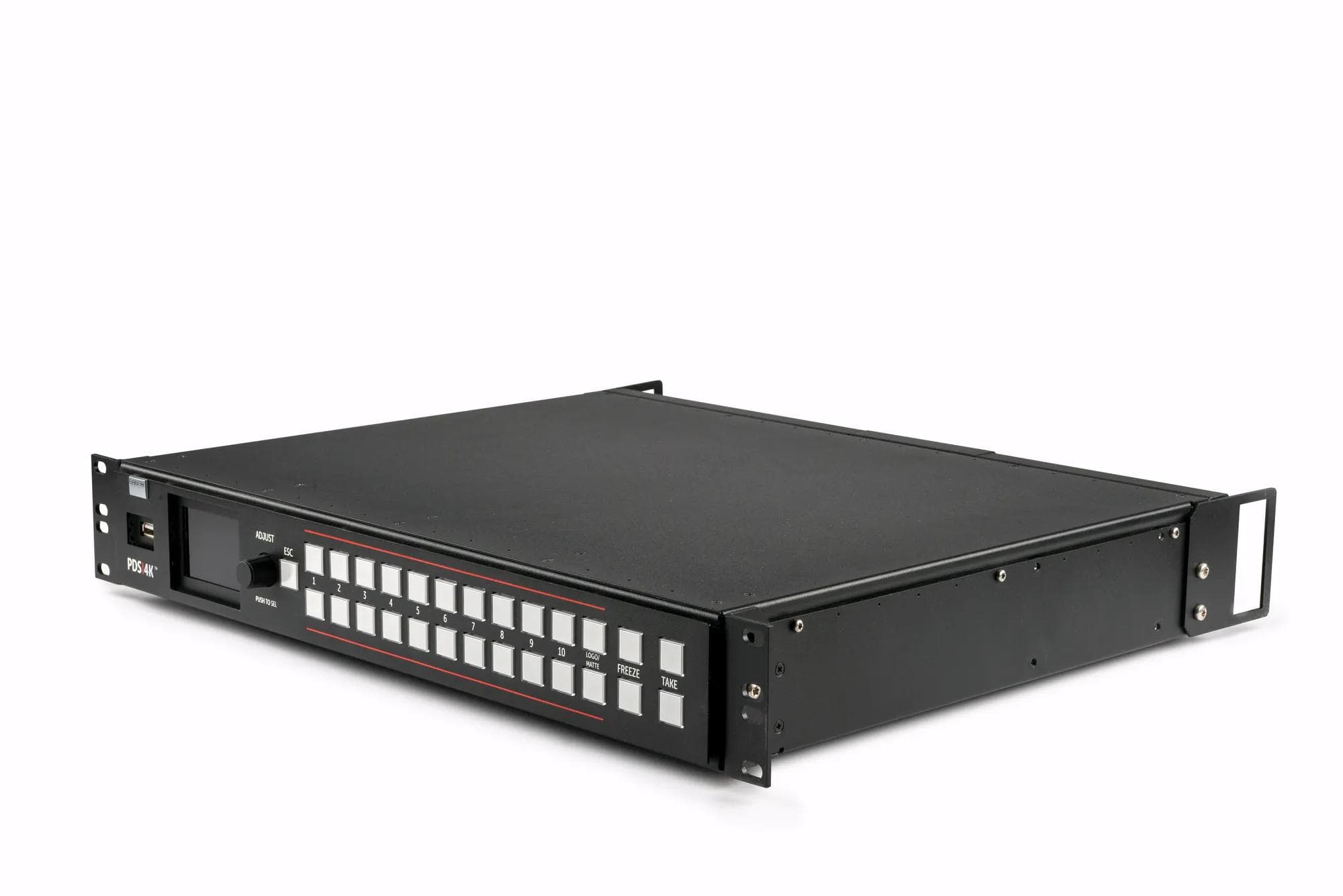

Barco PDS-4K HDMI Presentation Switcher (R9009650)

Name: Barco PDS-4K HDMI Presentation Switcher (R9009650)
Brand: Barco
SKU: PDS-4K-HDMI
Price: 8600.40 GBP
Availability: LimitedAvailability

£8,600.40inc. VAT

£7,167.00 ex. VAT

Low stock (1 left), order soon

Visa
Mastercard
American Express
PayPal

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

In UK stock, ships from the UK
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Call 020 3815 8642

Return within 14 days

Installation services available Purchase orders: education customers only

3 Years Warranty Included

Key specifications

Video inputs6x HDMI 2.0 connectors

Video outputs4x HDMI 2.0 connectors

Program outputTwo UHD @60 PGM, or four UHD @30 / FHD @60 PGM

Live effects canvas2x outputs up to 4K60 or 4x outputs up to 4K30, each with single mixing PiP or two non-mixing PiPs on a still background

Keying/MixingLuma and Chroma on non-mixing PiPs

Mixers1 mixer per PGM output

Still storesEight stills, up to 4K each

Multiviewer1x UHD@60 output with user definable layouts consisting of inputs plus PVW and PGM for each screen

All 18 specifications

Description

The Barco PDS-4K is a small-venue presentation switcher with 4K capabilities, designed for mid-sized live events, breakout sessions, seminar rooms and boardrooms. It enables single screen, dual screen and quad screen switching with high-quality 4K processing, with six HDMI 2.0 inputs and four fully seamless mixing program outputs at up to 4K resolution. Barco quotes ultra-low latency processing of two frames or less at 60Hz and Event Master Athena scaling technology, and an option card slot allows Dante audio and DisplayPort inputs to be added. Article number R9009650 is Barco's HDMI-only version; R9009651 is the PDS-4K SDI.

Full specifications Datasheet Compare alternatives

Call 020 3815 8642

Key features

Six HDMI 2.0 inputs, four HDMI 2.0 outputs

Single, dual and quad screen switching with high-quality 4K processing; two UHD@60 program outputs or four UHD@30 / FHD@60 program outputs.

Ultra-low latency

Barco quotes processing of two frames or less delay at 60Hz, with seamless transitions between inputs.

Athena scaling

The PDS-4K uses Event Master Athena scaling technology for signal clarity and minimum scaling artifacts.

Option card slot

An option card slot supports additional video input connectors, embedded audio processing and Dante audio. The DP + Audio card (R9802040) adds Dante audio (de)embedding, passthrough and two DisplayPort 1.2 inputs.

Multiple control paths

Front panel mappable buttons, Event Master screen management software for PC or Mac, Event Master controllers, WebUI, and Ethernet RJ-45 1000/100/10 Mbps autosense.

Multiviewer and still stores

1x UHD@60 multiviewer output with user-definable layouts consisting of inputs plus PVW and PGM for each screen, plus eight still stores of up to 4K each.

Technical specifications

Choose a section to view its specifications.

Connectivity (3)

Video inputs: 6x HDMI 2.0 connectors
Video outputs: 4x HDMI 2.0 connectors
Program output: Two UHD @60 PGM, or four UHD @30 / FHD @60 PGM

Power & Physical (2)

Dimensions (HxWxD): 6.62 cm (2.605 in) x 48.41 cm (19.06 in) x 40.9 cm (16.1 in)
Weight: 6.21 kg (13.7 lbs)

Certifications & Warranty (1)

Warranty: 3 years parts and labor

General (12)

Live effects canvas: 2x outputs up to 4K60 or 4x outputs up to 4K30, each with single mixing PiP or two non-mixing PiPs on a still background
Keying/Mixing: Luma and Chroma on non-mixing PiPs
Mixers: 1 mixer per PGM output
Still stores: Eight stills, up to 4K each
Multiviewer: 1x UHD@60 output with user definable layouts consisting of inputs plus PVW and PGM for each screen
Expandability: Option card slot for other video connector types and/or Dante audio
HDCP: HDCP 1.x and 2.2
Control: Front panel mappable buttons; Event Master screen management software for PC or MAC; Event Master controllers; WebUI; Ethernet RJ-45, 1000/100/10 Mbps autosense
Noise Level: 37 dB in a room temperature environment (23C/73F)
Power: Input power: 100-240 VAC 50/60Hz 151W
Environmental temperature: 0-40 C (32-104 F)
Environmental humidity: 0-95% non-condensing (non-operating); 0-85% non-condensing (operational)
