Home / Switches / AVer HUB35-EXT35 4K BYOM Matrix Switcher Kit

AVer

AVer HUB35-EXT35 4K BYOM Matrix Switcher Kit

Name: AVer HUB35-EXT35 4K BYOM Matrix Switcher Kit
Brand: AVer
SKU: HUB35-EXT35
Price: 3192.00 GBP
Availability: OutOfStock

£3,192.00inc. VAT

£2,660.00 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Call 020 3815 8642

Return within 14 days

Installation services available Purchase orders: education customers only

5 Years Warranty Included

Key specifications

In the boxHUB35: HUB35, Power Adapter, Power Cord, Cable Fixing Plate (x 2), Cable Tie (x 18), M3 x 5.0 mm Truss Head Screw (x 8), M3 x 10 mm Screw (x 4), Rack Mount Bracket (x 2), USB 3.0 Type-A to Type-B Cable, USB 3.1 Type-C to Type-C Cable, Terminal Block 3-Pole, Quick Start Guide || EXT35: EXT35, Power Adapter, Power Cord, M3 x 5.0 mm Truss Head Screw (x 4), M3 x 10 mm Screw (x 4), Rack Mount Bracket (

HUB35 — HostInput 1: USB Type-C x 1 (PD Charging, 100W Max.) | Input 2: USB Type-C x 1 | Input 3: USB Type-B x 1; HDMI x 1 | Input 4: USB Type-B x 1; HDMI x 1 | USB-C Charging: Yes

HUB35 — USB DevicesConnections: USB Type-A x 4 | USB Pass-Through: Yes

HDMI Display OutputsOutput: 2 | HDMI Display Output Modes: 2 | Audio HDMI: Yes

HUB35 — VideoResolution: Up to 4K Ultra HD | Signal Type: DP Alt Mode, HDMI 2.0 | HDMI CEC: Yes | Color Space: RGB, YCbCr

HUB35 — AudioTransmit Mode: Audio Pass-Through from Input to Output | Format: HDMI 2.0

Control InterfacesEthernet: 1 | RS-232: 1 | Touch Control Panel: Yes, Can Be Paired with AVer CP10 G2 via BYOM Controller App

LinkRange: USB Type-C: 100 m (328 ft.) | Medium: CAT6a U/FTP

All 18 specifications

Description

Level up collaboration with the AVer HUB35-EXT35, a 4K BYOM Matrix Switcher Kit. For corporate meetings, hybrid learning, and live events, it offers USB-C connectivity for 4K video, audio, and high-speed power delivery. With four to five inputs, dual-screen support, and the AVer CP10 G2 touch control, enjoy dual AVer camera switching for dynamic, multi-angle video experiences. Equipped with a 4K USB extender for long-distance peripheral connectivity, it's ideal for large and extra-large spaces.

Full specifications Datasheet Compare alternatives

In the box: HUB35: HUB35, Power Adapter, Power Cord, Cable Fixing Plate (x 2), Cable Tie (x 18), M3 x 5.0 mm Truss Head Screw (x 8), M3 x 10 mm Screw (x 4), Rack Mount Bracket (x 2), USB 3.0 Type-A to Type-B Cable, USB 3.1 Type-C to Type-C Cable, Terminal Block 3-Pole, Quick Start Guide || EXT35: EXT35, Power Adapter, Power Cord, M3 x 5.0 mm Truss Head Screw (x 4), M3 x 10 mm Screw (x 4), Rack Mount Bracket (x 2), USB 3.0 Type-A to Type-B Cable, USB 3.1 Type-C to Type-C Cable

Call 020 3815 8642

Technical specifications

Choose a section to view its specifications.

Display (1)

HDMI Display Outputs: Output: 2 | HDMI Display Output Modes: 2 | Audio HDMI: Yes

Connectivity (2)

HUB35 — USB Devices: Connections: USB Type-A x 4 | USB Pass-Through: Yes
EXT35 — USB Devices: Connections: USB Type-A x 2

Audio (2)

HUB35 — Audio: Transmit Mode: Audio Pass-Through from Input to Output | Format: HDMI 2.0
EXT35 — Audio: Transmit Mode: Audio Pass-Through from Input to Output | Format: HDMI 2.0

Certifications & Warranty (2)

HUB35 — Warranty: 5 Years
EXT35 — Warranty: 5 Years

General (11)

In the box: HUB35: HUB35, Power Adapter, Power Cord, Cable Fixing Plate (x 2), Cable Tie (x 18), M3 x 5.0 mm Truss Head Screw (x 8), M3 x 10 mm Screw (x 4), Rack Mount Bracket (x 2), USB 3.0 Type-A to Type-B Cable, USB 3.1 Type-C to Type-C Cable, Terminal Block 3-Pole, Quick Start Guide || EXT35: EXT35, Power Adapter, Power Cord, M3 x 5.0 mm Truss Head Screw (x 4), M3 x 10 mm Screw (x 4), Rack Mount Bracket (
HUB35 — Host: Input 1: USB Type-C x 1 (PD Charging, 100W Max.) | Input 2: USB Type-C x 1 | Input 3: USB Type-B x 1; HDMI x 1 | Input 4: USB Type-B x 1; HDMI x 1 | USB-C Charging: Yes
HUB35 — Video: Resolution: Up to 4K Ultra HD | Signal Type: DP Alt Mode, HDMI 2.0 | HDMI CEC: Yes | Color Space: RGB, YCbCr
Control Interfaces: Ethernet: 1 | RS-232: 1 | Touch Control Panel: Yes, Can Be Paired with AVer CP10 G2 via BYOM Controller App
Link: Range: USB Type-C: 100 m (328 ft.) | Medium: CAT6a U/FTP

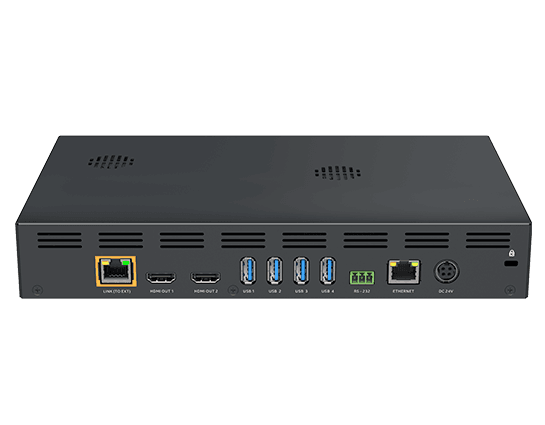

HUB35 — Interfaces: USB Type-A x 4, USB Type-B x 2, USB Type-C x 2, HDMI In x 2, HDMI Out x 2, RJ-45 x 1, LINK (TO EXT) x 1, RS-232 x 1, Power Input x 1, Button x 2 (Power, Reset)
HUB35 — Package Contents: HUB35, Power Adapter, Power Cord, Cable Fixing Plate (x 2), Cable Tie (x 18), M3 x 5.0 mm Truss Head Screw (x 8), M3 x 10 mm Screw (x 4), Rack Mount Bracket (x 2), USB 3.0 Type-A to Type-B Cable, USB 3.1 Type-C to Type-C Cable, Terminal Block 3-Pole, Quick Start Guide
EXT35 — Host: Input 1: USB Type-C x 1 (PD Charging, 60W Max.) | Input 2: USB Type-C x 1 | Input 3: USB Type-B x 1 | USB-C Charging: Yes
EXT35 — Video: Input Resolution: Up to 4K Ultra HD | Input Signal Type: DP Alt Mode, USB Type-B | Color Space: RGB, YCbCr
EXT35 — Interfaces: USB Type-A x 2, USB Type-B x1, USB Type-C x 1, LINK x 1, Power Input x 1, Button x 2 (Power, Reset)
EXT35 — Package Contents: EXT35, Power Adapter, Power Cord, M3 x 5.0 mm Truss Head Screw (x 4), M3 x 10 mm Screw (x 4), Rack Mount Bracket (x 2), USB 3.0 Type-A to Type-B Cable, USB 3.1 Type-C to Type-C Cable
