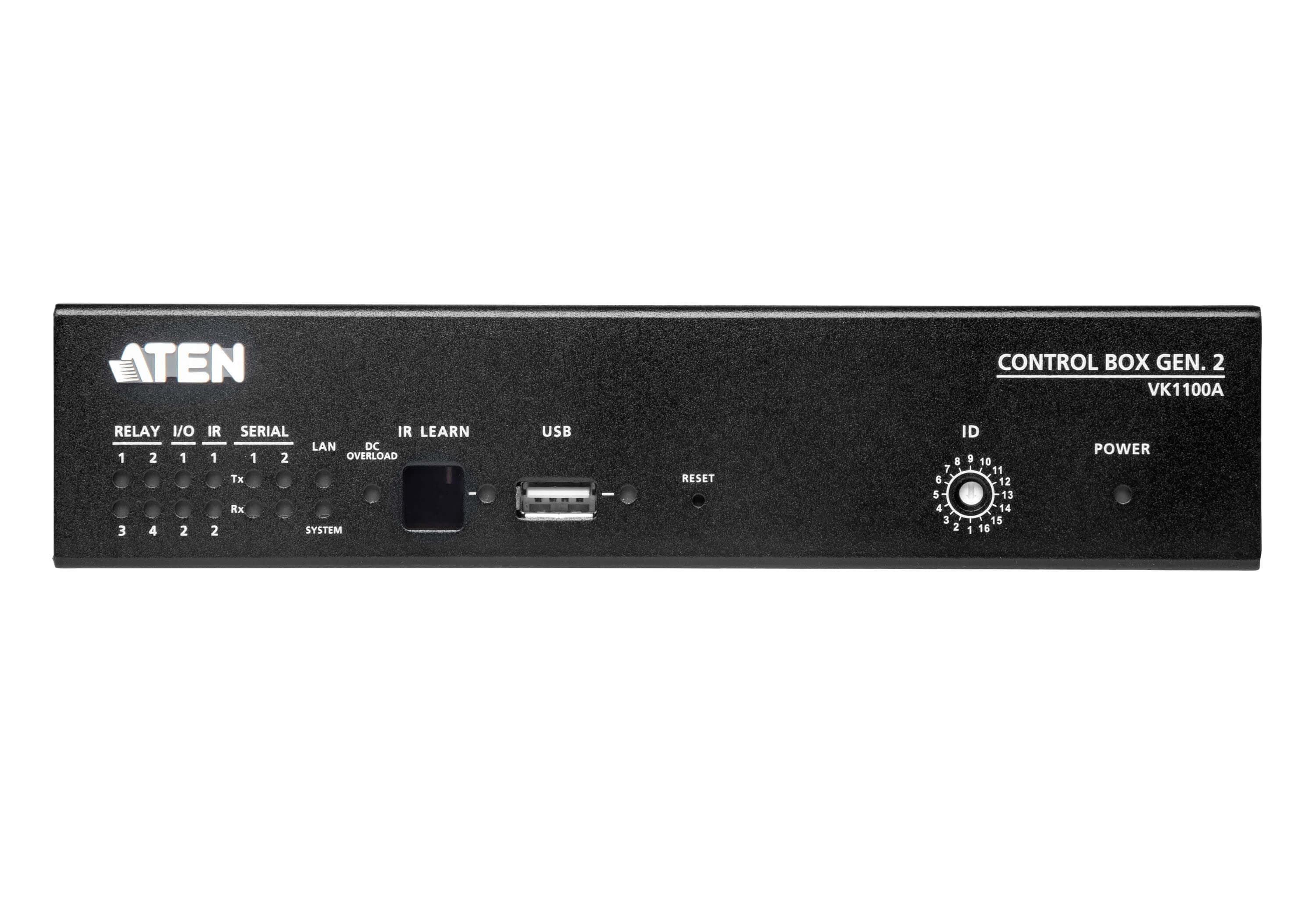

ATEN VK1100A Control System Compact Control Box Gen. 2

Name: ATEN VK1100A Control System Compact Control Box Gen. 2
Brand: ATEN
SKU: VK1100A
Price: 916.43 GBP
Availability: OutOfStock

£916.43inc. VAT

£763.69 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £305.48 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

Memory — SDRAM512MB

Memory — Flash8GB

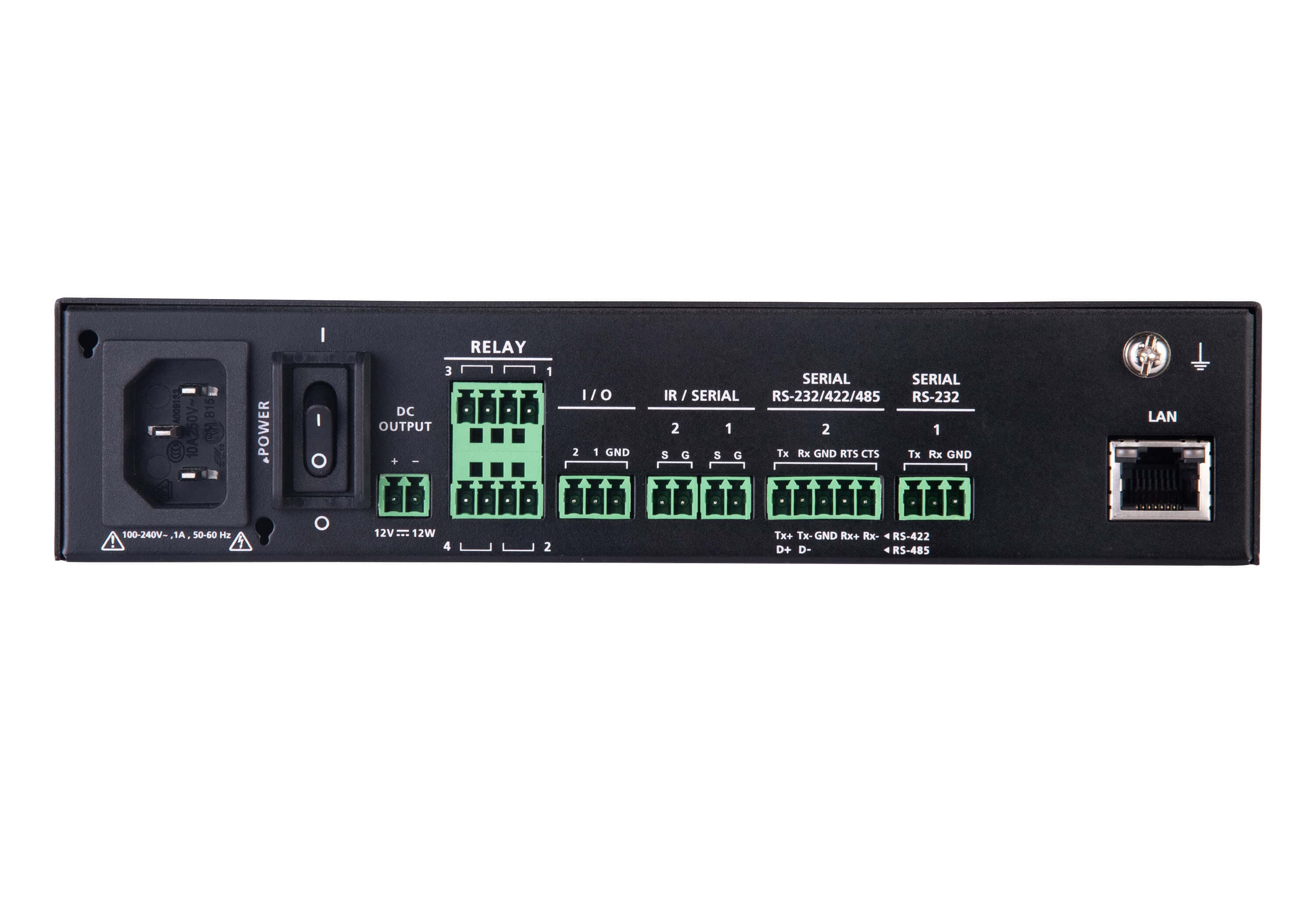

Interfaces — Relay• 4 x Relay Channel (2 x 4-Pole Terminal Block Connector); • Normally open, isolated Relays; • Contact Rating: Max 24 VDC, 2A

Interfaces — VDC• 1 x 12 VDC Output Port (1 x 2-Pole Terminal Block Connector); • Power Supply: 12 VDC, 1A Max

USB1 x USB Type A

Switches — Power1 x On/Off Switch

IR Learning1 x IR Receiver LED

Reset Button1 x Semi-recessed Pushbutton

All 15 specifications

Description

The ATEN VK1100A is a control box — the processor at the centre of an ATEN control system. It holds the room logic and speaks to projectors, displays, matrix switches, blinds, lighting and third-party gear over serial, IR, relay and IP, so one button press can sequence a whole room.

Full specifications Datasheet Compare alternatives

Rooms are built in ATEN's Configurator, which ships with a large library of device drivers and a graphical designer for touch panel and control pad layouts, so a standard meeting room can be commissioned without writing code.

Interfaces include bi-directional RS-232 and Ethernet. Supplied to order from TopAV with ATEN's 36-month warranty.

Key features

Web Viewer

Integrated with 3rd-party systems or any web-based console for easier room equipment management.

Supports Pronto formatted IR codes

IR command codes can be entered in Hex format.

Supports Modbus protocol

Enables integration with Modbus devices, including TCP, RTU and its checksum data.

2 free licenses for mobile control

If you require more than 2 licenses, contact the local sales representative. For more information on licenses, please see Specifications.

Technical specifications

Connectivity

USB1 x USB Type A

IR Learning1 x IR Receiver LED

Power — Maximum Input Power Rating100-240 V AC, 50-60 Hz, 1A

Power & Physical

Physical Properties — Weight1.19 kg ( 2.62 lb )

Physical Properties — Dimensions (L x W x H)20.00 x 16.41 x 4.40 cm; (7.87 x 6.46 x 1.73 in.)

General

Memory — SDRAM512MB

Memory — Flash8GB

Interfaces — Relay• 4 x Relay Channel (2 x 4-Pole Terminal Block Connector); • Normally open, isolated Relays; • Contact Rating: Max 24 VDC, 2A

Interfaces — VDC• 1 x 12 VDC Output Port (1 x 2-Pole Terminal Block Connector); • Power Supply: 12 VDC, 1A Max

Switches — Power1 x On/Off Switch

Reset Button1 x Semi-recessed Pushbutton

Environmental — Operating Temperature0 – 50°C

Environmental — Storage Temperature–20 – 60°C

Environmental — Humidity0 - 80% RH, Non-Condensing

Physical Properties — HousingMetal

Documents

ATEN manufacturer datasheet (PDF) - series spec sheet that covers the VK1100A alongside related models
