ATEN VK02001 Control System 12-Button Control Pad (EU, 2 Gang, Black)

Name: ATEN VK02001 Control System 12-Button Control Pad (EU, 2 Gang, Black)
Brand: ATEN
SKU: VK02001
Price: 664.44 GBP
Availability: OutOfStock

£664.44inc. VAT

£553.70 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £221.48 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

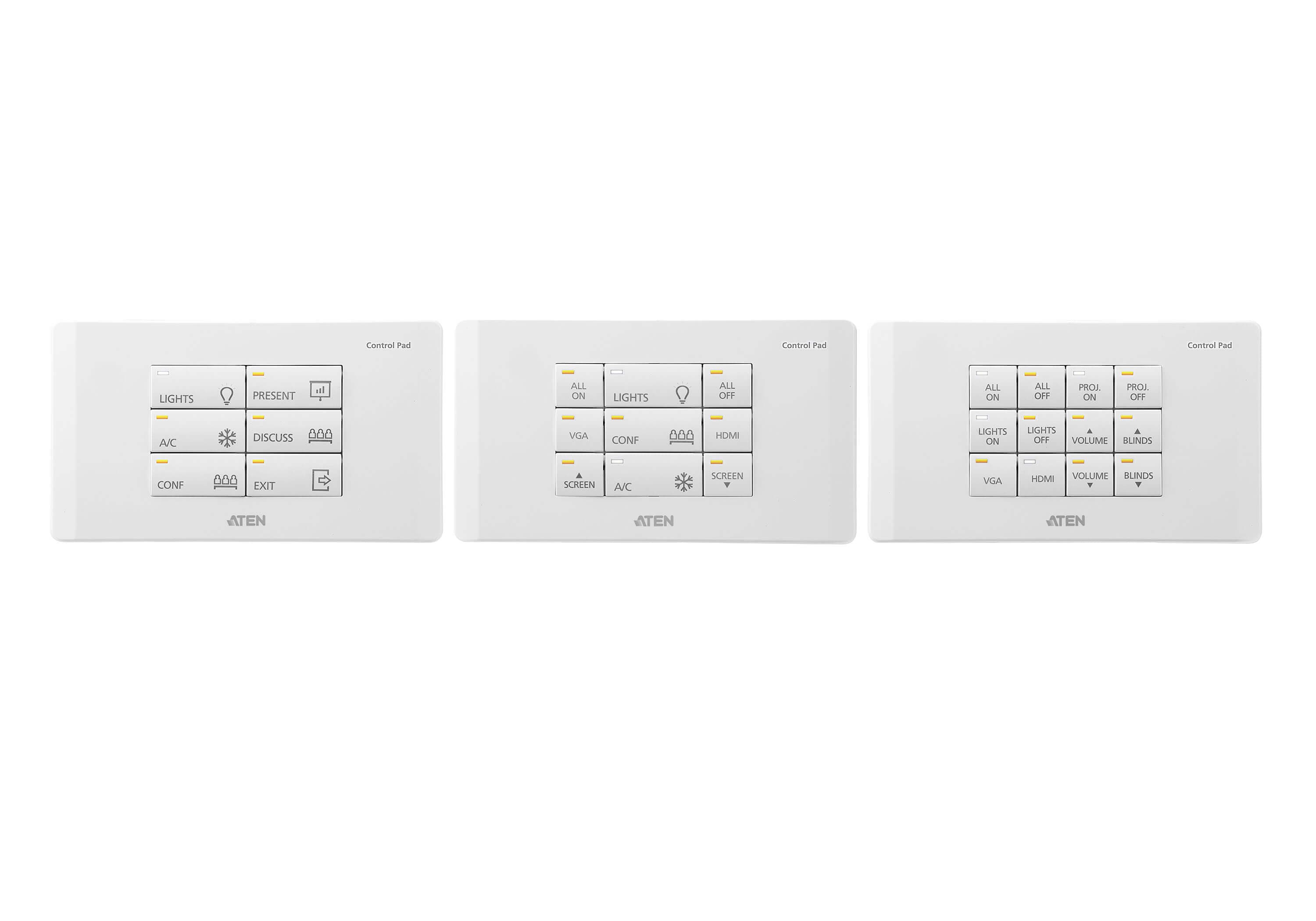

Interfaces — Keypad Layout6~12 buttons customizable in 125 keypad layouts

Interfaces — Serial• 2 x Bi-directional RS-232 Port; (2 x 3-Pole Terminal Block Connector); – Baud Rate: 300 to 115200 (default: 9600); – Data Bit: 8 (default) or 7; – Stop Bit: 1 (default) or 2; – Parity: None (default), even or odd

Interfaces — Relay• 2 x Relay Channel (2 x 2-Pole Terminal Block Connector); • Normally open, isolated Relays; • Contact Rating: Max 24 VDC, 1A

Interfaces — I/O• 1 x Digital Input Channel; (1 x 2-Pole Terminal Block Connector); – VDC Mode; Input Voltage Range: 0 to 5 VDC; Programmable Range: 1 to 5 VDC; – Dry Contact Mode; Pull-up 2k ohms to + 5 VDC

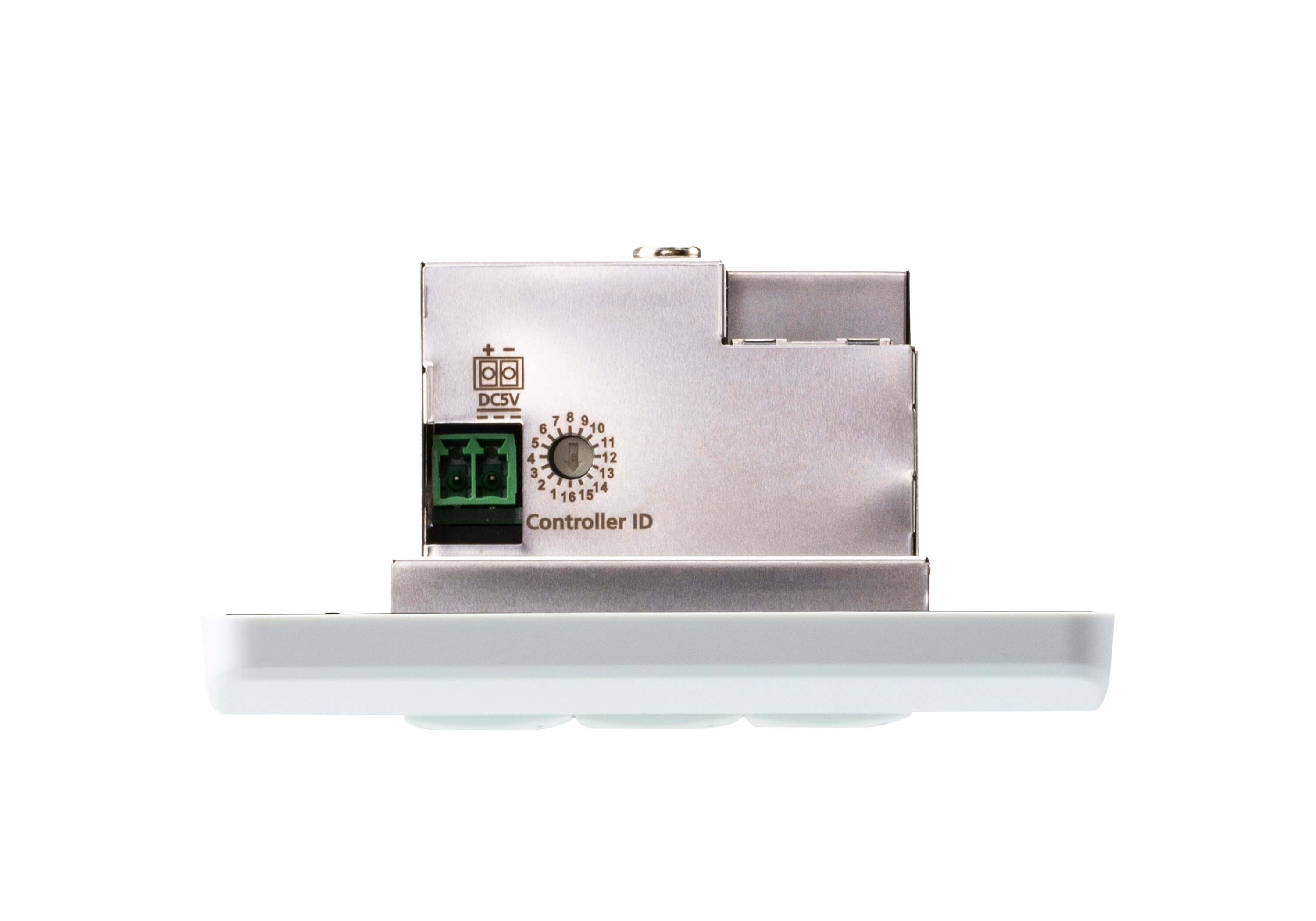

Switches — Controller ID1 x 16-segment Switch

Reset Button1 x Semi-recessed Pushbutton

Environmental — Operating Temperature0 – 50°C

Environmental — Storage Temperature–20 – 60°C

All 13 specifications

Description

The ATEN VK02001 is a 12-button control pad for ATEN's control system — the wall plate people actually touch to start a meeting, drop a screen, dim the lights or shut the room down, without opening an app or finding a remote.

Also in this range:VK01001 Full specifications Datasheet Compare alternatives

Buttons are configured in ATEN's Configurator software and can be laser-engraved to the room's own wording, so the pad reads as part of the building rather than as generic AV kit. It talks to an ATEN control box over the LAN, and can also be driven from a mobile device.

This is the black finish, which ATEN builds to order. It is powered over Ethernet or by an optional adapter and fits a standard 2-gang EU back box. Supplied to order from TopAV with ATEN's 36-month warranty.

Key features

Supports various interface connections

• 2 x RS-232 ports • 2 x Relay channels • 1 x Digital input channel • 1 x Ethernet port.

Web Viewer

Integrated with 3rd-party systems or any web-based console for easier room equipment management.

Supports Modbus protocol

Enables integration with Modbus devices, including TCP, RTU and its checksum data.

Dual power supplies

Power over Ethernet (PoE) and DC 5V (optional).

Technical specifications

Power & Physical

Physical Properties — Weight0.19 kg ( 0.42 lb )

Physical Properties — Dimensions (L x W x H)8.32 x 14.76 x 4.80 cm; (3.28 x 5.81 x 1.89 in.)

General

Interfaces — Keypad Layout6~12 buttons customizable in 125 keypad layouts

Interfaces — Relay• 2 x Relay Channel (2 x 2-Pole Terminal Block Connector); • Normally open, isolated Relays; • Contact Rating: Max 24 VDC, 1A

Switches — Controller ID1 x 16-segment Switch

Reset Button1 x Semi-recessed Pushbutton

Environmental — Operating Temperature0 – 50°C

Environmental — Storage Temperature–20 – 60°C

Environmental — Humidity0 - 80% RH, Non-Condensing

Physical Properties — HousingPlastic

License — Max. No. Allowed10 licenses

Documents

ATEN manufacturer datasheet (PDF) - series spec sheet that covers the VK02001 alongside related models
