ATEN
ATEN VE3912T DisplayPort / HDMI / VGA Switch with HDBaseT Transmitter (PoH PD)
£666.19inc. VAT
£555.16 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Or 3 interest-free payments of £222.07 with PayPal Pay in 3.
4.5 on Trustpilot · 14 reviewsSeen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
2 Years Warranty Included
Key specifications
Video Input — Interfaces1 x HDMI Type A Female (Black); 1 x HDB-15 (VGA) Female (Blue); 1 x DisplayPort Female (Black)
Video Input — ImpedanceHDMI: 100 Ω; HDB-15 (VGA): 75 Ω; DisplayPort: 100 Ω
Video Input — Max. DistanceHDMI: 5m at 4K@30Hz; HDB-15(VGA): 10m at 1920x1600; DisplayPort: 3m at 4K@30Hz
Video Output — Interfaces1 x HDMI Type A Female (Black)
Video Output — Impedance100 Ω
Video Output — Max. DistanceHDMI: 5m at 4K@30Hz; 3m at 4K@60Hz (4:4:4)
Video — Max. Data Rate10.2Gbps (3.4Gbps per lane)
Video — Max. Pixel Clock340 MHz
Description
The ATEN VE3912T is an HDBaseT transmitter for sending HDMI over structured cabling. It replaces a long, lossy HDMI run with ordinary Cat 5e/6 between the source rack and the display, which is what makes lecture theatres, boardrooms and digital signage practical to wire.
Video is carried at up to HDMI/DisplayPort:. Control passes down the same cable, so IR and RS-232 from the head end still reach the display, and PoH powers the far end from the near end so no mains socket is needed behind the screen.
Housing is metal. Supplied to order from TopAV with ATEN's 36-month warranty.
Key features
Supports multiple source inputs (DisplayPort/HDMI/VGA)
Easily switching among sources via a pushbutton.
Auto Switch Mode
Allows the VE3912T to automatically switch to a newly plugged-in source.
Superior video quality
• HDMI/Displayport: 4K at distance up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable • VGA: 1600 x 1200 and 1920 x 1200 up to 100 m via a Cat 6a or ATEN 2L-2910 Cat 6 cable.
HDBaseT Long Reach Mode
Up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.
Technical specifications
Display
Video — Max. Resolutions / DistanceHDMI/DisplayPort:; Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a); VGA:; Up to 1920x1200 & 1600x1200@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1920x1080@100m (Cat 5e/6/6a)
Connectivity

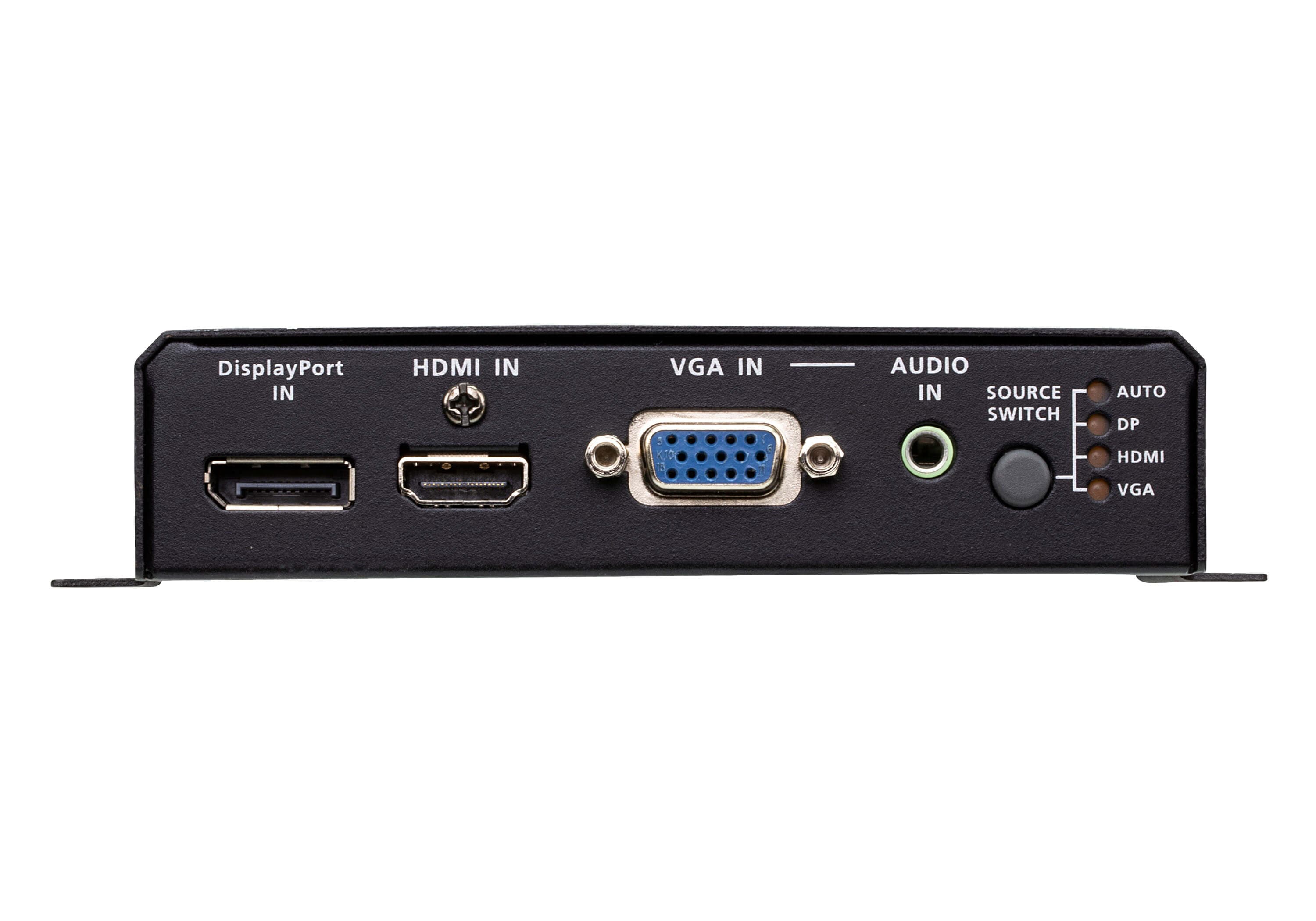

Video Input — Interfaces1 x HDMI Type A Female (Black); 1 x HDB-15 (VGA) Female (Blue); 1 x DisplayPort Female (Black)
Video Input — ImpedanceHDMI: 100 Ω; HDB-15 (VGA): 75 Ω; DisplayPort: 100 Ω
Video Input — Max. DistanceHDMI: 5m at 4K@30Hz; HDB-15(VGA): 10m at 1920x1600; DisplayPort: 3m at 4K@30Hz
Video Output — Interfaces1 x HDMI Type A Female (Black)
Video Output — Impedance100 Ω
Video Output — Max. DistanceHDMI: 5m at 4K@30Hz; 3m at 4K@60Hz (4:4:4)
Audio — Input1 x HDMI Type A Female (Black); 1 x Mini Stereo Jack Female (Green); 1 x DisplayPort Female (Black)

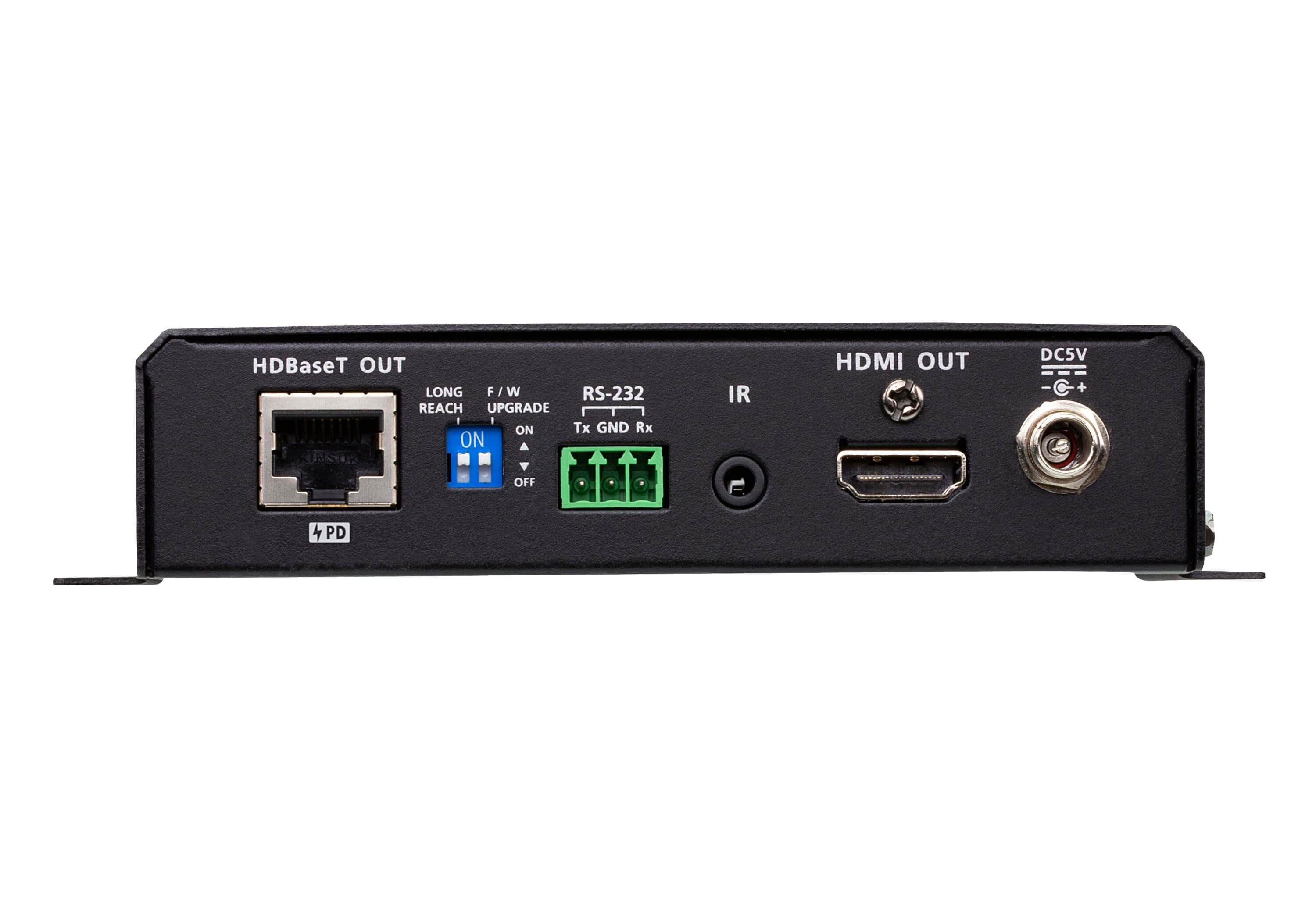

Connectors — Unit To Unit1 x RJ-45 Female (Silver), HDBaseT
Connectors — Power1 x DC Jack (Black) with locking or; 1 x RJ-45 Female (POH)
Control — IR1 x Mini Stereo Jack Female (Black)
Certifications & Warranty
Video — ComplianceHDMI (3D, Deep Color, 4K); HDCP2.2 Compatible; Consumer Electronics Control (CEC)
General
Video — Max. Data Rate10.2Gbps (3.4Gbps per lane)
Video — Max. Pixel Clock340 MHz
Control — RS-232Connector: 1 x Terminal Block, 3 pole; Type: DTE; Baud Rate: 115200, Data Bits:8,; Stop Bits:1, no parity and flow control
