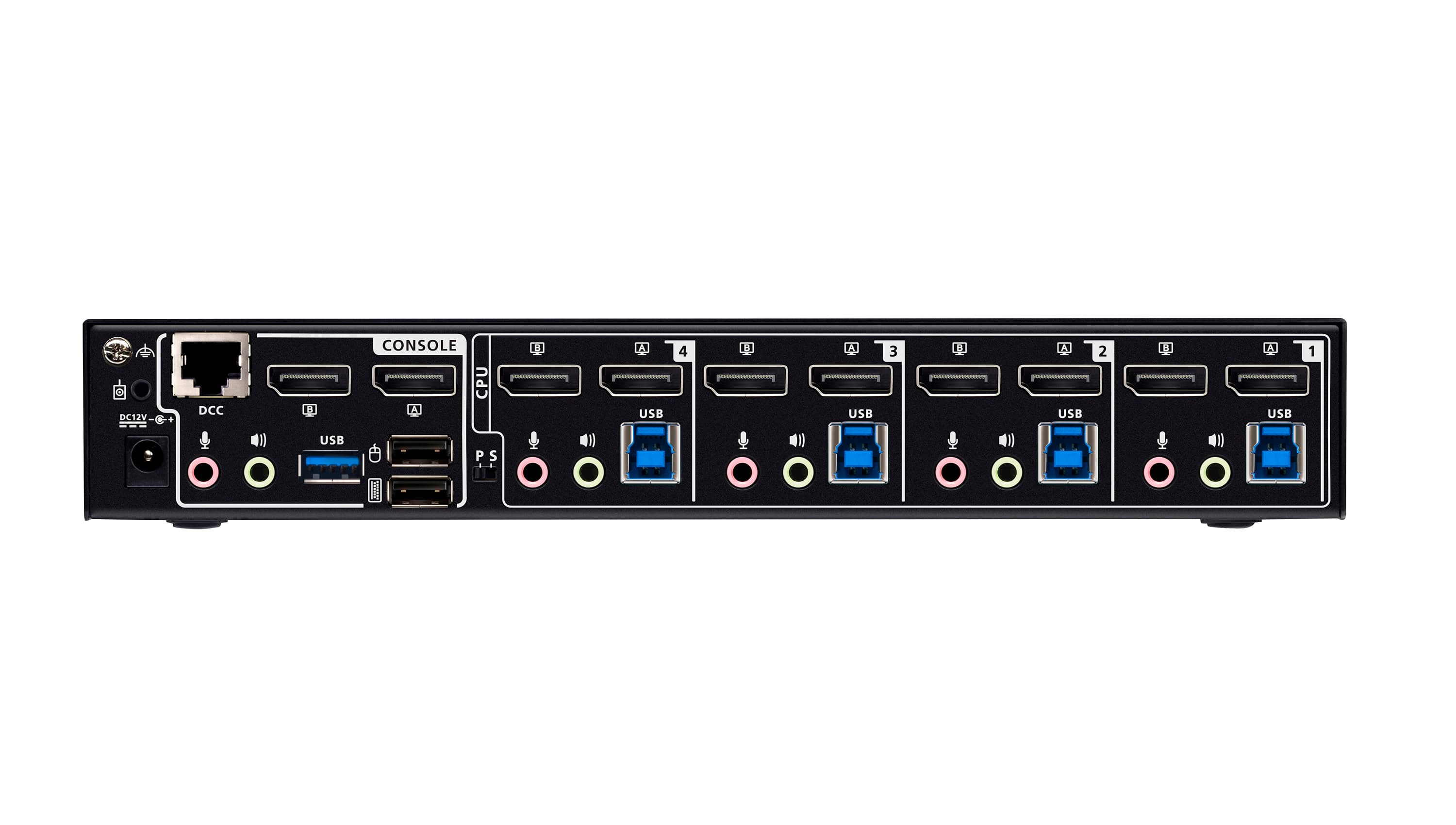

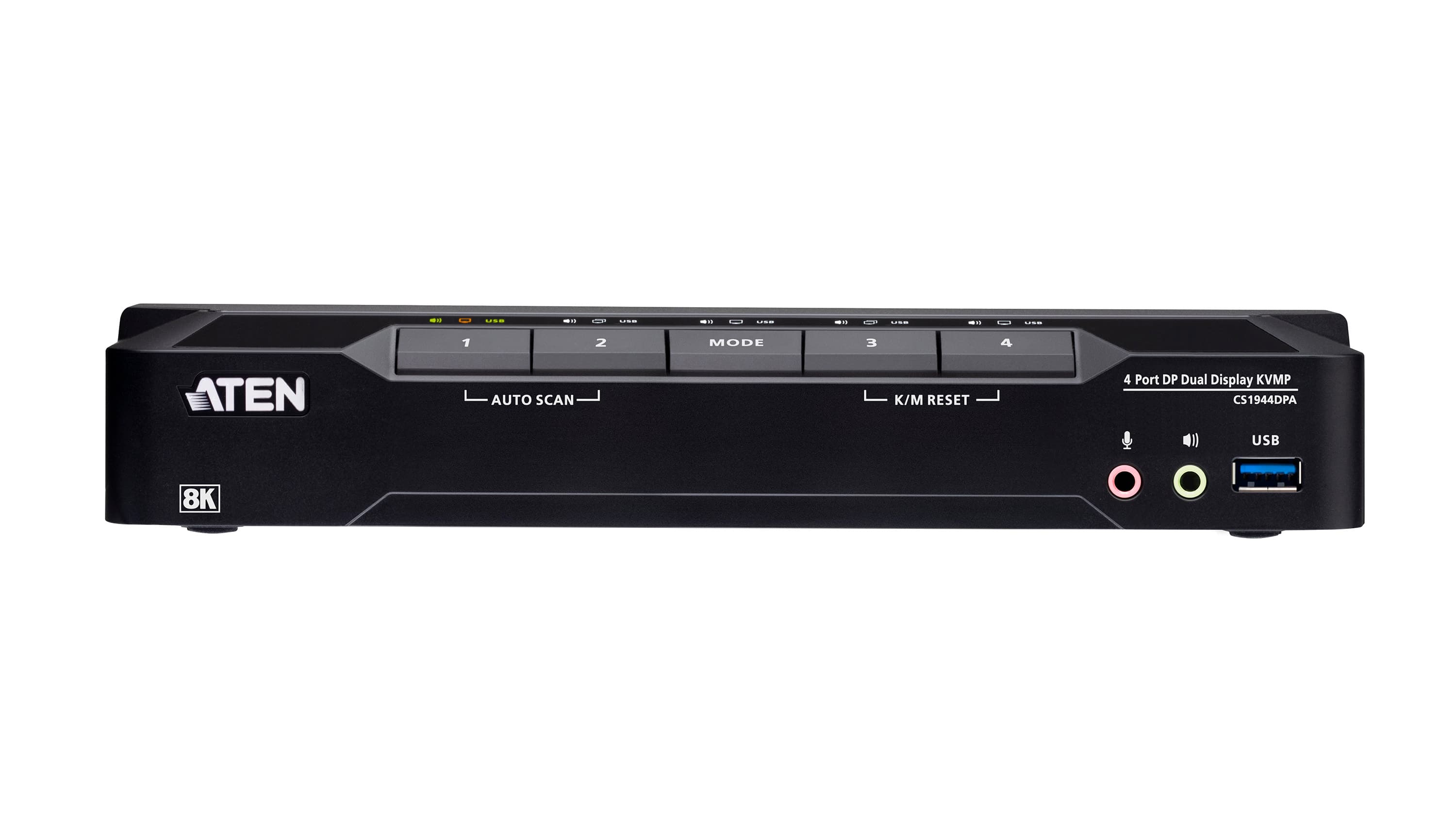

ATEN CS1944DPA 4-Port USB 3.0 8K DisplayPort Dual-Display KVMP™ Switch (Cables included)

Name: ATEN CS1944DPA 4-Port USB 3.0 8K DisplayPort Dual-Display KVMP™ Switch (Cables included)
Brand: ATEN
SKU: CS1944DPA
Price: 652.46 GBP
Availability: OutOfStock

£652.46inc. VAT

£543.72 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £217.49 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

Computer Connections4

Port SelectionHotkey, Pushbutton, Mouse wheel, RS-232 Commands, Remote port selector

Console Ports2 x USB Type A Female; 2 x DisplayPort Female (Black); 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear); 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)

KVM (Computer) Ports4 x USB3.1 Gen1 Type B Female (Blue); 8 x DisplayPort Female (Black); 4 x 3.5mm Audio Jack Female (Green); 4 x 3.5mm Audio Jack Female (Pink)

Daisy Chain Ports1 x RJ-45 Female

USB Hub2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)

KVM (LEDs)5 (Orange)

Audio (LEDs)5 (Green)

All 15 specifications

Description

The ATEN CS1944DPA is a 4-Port USB 3.0 8K DisplayPort Dual-Display KVMP™ Switch (Cables included). One keyboard, monitor and mouse drive several machines, with switching by hotkey, front-panel button or the other methods ATEN lists for this model.

Full specifications Datasheet Compare alternatives

It takes 4 computer connections, offers port selection by hotkey, pushbutton, mouse wheel, rs-232 commands, remote port selector and is specified for video up to 7680 x 4320 @ 60 Hz, 5120 x 2880 @ 60Hz, 4096 x 2160 @ 240Hz.

Console and computer-side connectors, LED behaviour and emulation detail are in the ATEN datasheet attached to this listing. The unit is housed in metal and operates from 0–50°C.

Available to order from TopAV with ATEN's standard 24-month product warranty.

Key features

Video

Up to 7680 x 4320 @ 60 Hz, 5120 x 2880 @ 60Hz, 4096 x 2160 @ 240Hz

Computer connections

Console ports

2 x USB Type A Female; 2 x DisplayPort Female (Black); 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear); 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)

Port selection

Hotkey, Pushbutton, Mouse wheel, RS-232 Commands, Remote port selector

Technical specifications

Choose a section to view its specifications.

Connectivity (7)

Computer Connections: 4
Port Selection: Hotkey, Pushbutton, Mouse wheel, RS-232 Commands, Remote port selector
Console Ports: 2 x USB Type A Female; 2 x DisplayPort Female (Black); 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear); 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM (Computer) Ports: 4 x USB3.1 Gen1 Type B Female (Blue); 8 x DisplayPort Female (Black); 4 x 3.5mm Audio Jack Female (Green); 4 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports: 1 x RJ-45 Female
USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
USB Link (LEDs): 5 (Green)

Audio (1)

Audio (LEDs): 5 (Green)

Power & Physical (2)

Weight: 0.62 kg ( 1.37 lb )
Dimensions (L x W x H): 26.00 x 7.18 x 4.30 cm; (10.24 x 2.83 x 1.69 in.)

General (5)

KVM (LEDs): 5 (Orange)
Selected (Switches): 5 x Pushbutton
Housing: Metal
Operating Temperature: 0–50°C
Storage Temperature: -20–60°C

Documents

ATEN CS1944DPA datasheet (PDF, published by ATEN)
