ATEN CE980 USB True 4K DisplayPort/HDMI Optical KVM Extender (True 4K @ 300 m)

Name: ATEN CE980 USB True 4K DisplayPort/HDMI Optical KVM Extender (True 4K @ 300 m)
Brand: ATEN
SKU: CE980
Price: 1742.58 GBP
Availability: OutOfStock

£1,742.58inc. VAT

£1,452.15 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £580.86 with PayPal Pay in 3.

Independently reviewed on Trustpilot

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Call 020 3815 8642

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

Console Ports4 x USB Type A Female (White); 1 x DisplayPort/HDMI Female (Black); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink)

KVM PortsLocal unit: 1 x USB Type B Female (White); 1 x DisplayPort/HDMI Female (Black); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink) | Remote unit: N/A

RS-232Local unit: 1 x DB-9 Female (Black) | Remote unit: 1 x DB-9 Male (Black)

Unit To Unit1 x bi-directional SFP+ (LC)

Max. ResolutionUp to 4096 x 2160 @ 60Hz (4:4:4) / 3840 x 2160 @ 60Hz (4:4:4)

Video InputLocal unit: 1 (Orange) | Remote unit: N/A

Console Status (LEDs)3 (Orange)

Link (LEDs)1 (Orange)

All 15 specifications

Description

The ATEN CE980 is a USB True 4K DisplayPort/HDMI Optical KVM Extender (True 4K @ 300 m). It carries the console — keyboard, video, mouse and audio — away from the machine it is driving, so the computer can live in a rack or plant room while the operator works from a desk, a control position or a shop floor.

Also in this range:CE370 CE604 CE680 CE690 Full specifications Datasheet Compare alternatives

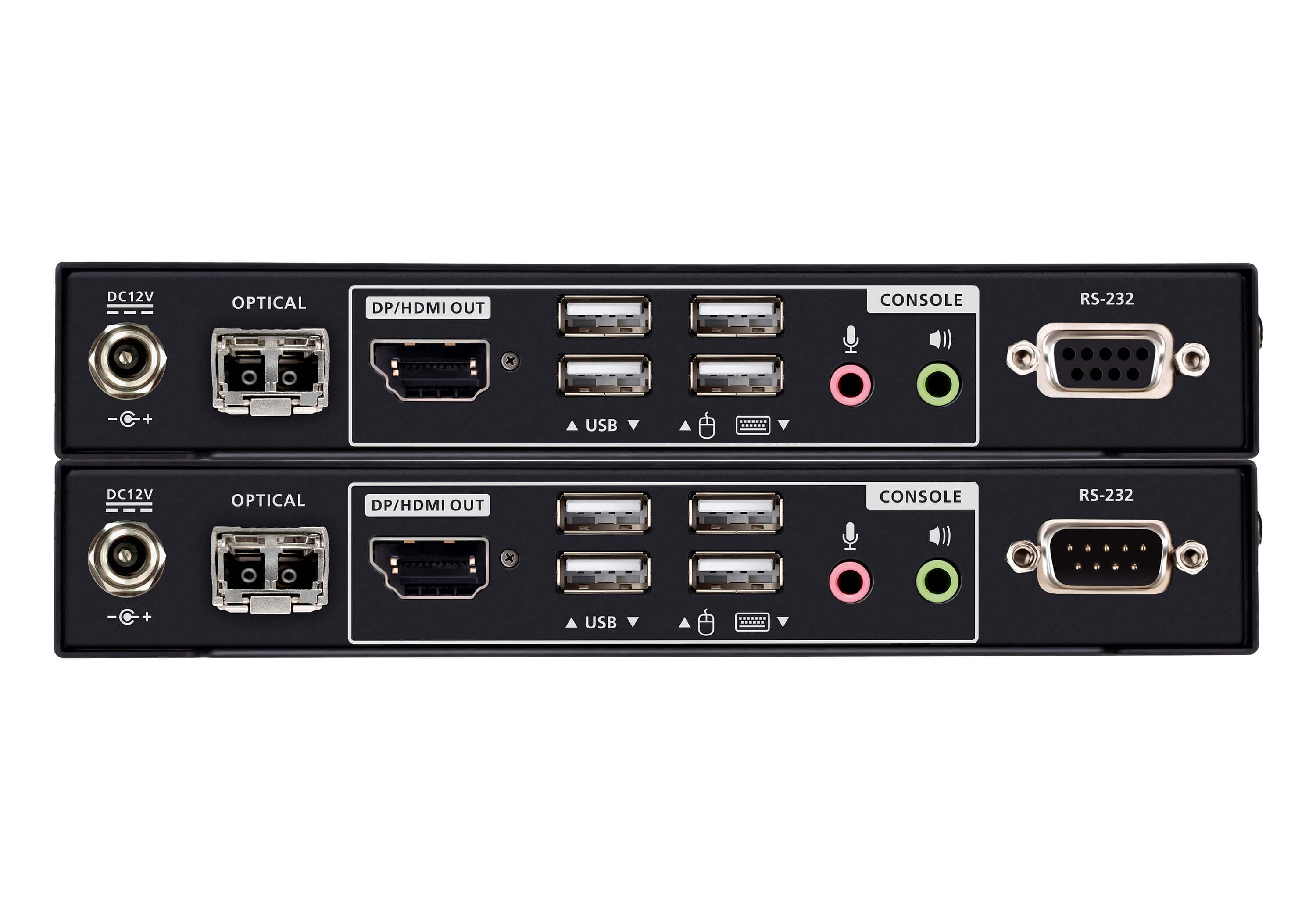

Console connections are 4 x USB Type A Female (White), 1 x DisplayPort/HDMI Female (Black), 1 x Mini Stereo Jack Female (Green), 1 x Mini Stereo Jack Female (Pink).

Housed in metal, it draws Local unit: DC12V:11.89W:86BTU/h | Remote unit: DC12V:9.49W:81BTU/h and operates from 0–40°C. The ATEN datasheet attached to this listing gives the full connector, LED and compatibility detail.

Available to order from TopAV with ATEN's standard 24-month product warranty.

Call 020 3815 8642

Key features

Console ports

4 x USB Type A Female (White); 1 x DisplayPort/HDMI Female (Black); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink)

KVM ports

Local unit: 1 x USB Type B Female (White); 1 x DisplayPort/HDMI Female (Black); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink) | Remote unit: N/A

Housing

Metal

Technical specifications

Choose a section to view its specifications.

Display (1)

Max. Resolution: Up to 4096 x 2160 @ 60Hz (4:4:4) / 3840 x 2160 @ 60Hz (4:4:4)

Connectivity (3)

Console Ports: 4 x USB Type A Female (White); 1 x DisplayPort/HDMI Female (Black); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink)
KVM Ports: Local unit: 1 x USB Type B Female (White); 1 x DisplayPort/HDMI Female (Black); 1 x Mini Stereo Jack Female (Green); 1 x Mini Stereo Jack Female (Pink) | Remote unit: N/A
Video Input: Local unit: 1 (Orange) | Remote unit: N/A

Power & Physical (2)

Weight: Local unit: 0.85 kg ( 1.87 lb ) | Remote unit: 0.84 kg ( 1.85 lb )
Dimensions (L x W x H): 17.82 x 15.62 x 2.88 cm; (7.02 x 6.15 x 1.13 in.)

General (9)

RS-232: Local unit: 1 x DB-9 Female (Black) | Remote unit: 1 x DB-9 Male (Black)
Unit To Unit: 1 x bi-directional SFP+ (LC)
Console Status (LEDs): 3 (Orange)
Link (LEDs): 1 (Orange)
Power (LEDs): 1 (Green)
Operation Mode Selection (Switches): 1 x Pushbutton
Housing: Metal
Operating Temperature: 0–40°C
Storage Temperature: -20–60°C
