ATEN AD202E 2-CH Mic/Line In/Out Audio Processor with DSP and Dante

Name: ATEN AD202E 2-CH Mic/Line In/Out Audio Processor with DSP and Dante
Brand: ATEN
SKU: AD202E
Price: 1038.07 GBP
Availability: OutOfStock

£1,038.07inc. VAT

£865.06 ex. VAT

Out of stock

Visa
Mastercard
American Express
PayPal

Or 3 interest-free payments of £346.03 with PayPal Pay in 3.

4.5 on Trustpilot · 14 reviews

Seen it cheaper? We price-match genuine like-for-like quotes. How it works

Bought in the UK, backed in the UKWhy it matters →

Sourced through UK distribution
UK manufacturer warranty
UK-based engineers
No import duty or customs charges
GBP pricing, UK VAT invoices

Call 01342 580255

Return within 14 days

Installation services available Purchase orders: education customers only

2 Years Warranty Included

Key specifications

Gain Range0~+34dB

Maximum Input Level-30dBu

Impedance3kΩ

Phantom power+48V, Individual Control in Each Input Channel

Gain Range (Line Inputs)Balanced: -8~+4dB; Unbalanced: -8~+10dB

Maximum Input Level (Line Inputs)+24dBu, Nominal Input Level: +4dBu

Impedance (Line Inputs)Balanced: 20kΩ; Unbalanced: 10kΩ

Maximum output Level+24dBu, Nominal Input Level: +4dBu

All 15 specifications

Description

The ATEN AD202E is a 2-CH Mic/Line In/Out Audio Processor with DSP and Dante from ATEN's Professional Audio range, built for meeting rooms, lecture theatres and other installed systems where the audio chain has to be set once and then left alone.

Also in this range:AD400E Full specifications Datasheet Compare alternatives

Key figures from ATEN's specification: Frequency Response: 20~20kHz, +/-0.5dB; Distortion: THD+N: <0.01%, 1kHz, Max. Gain; Impedance: 3kΩ.

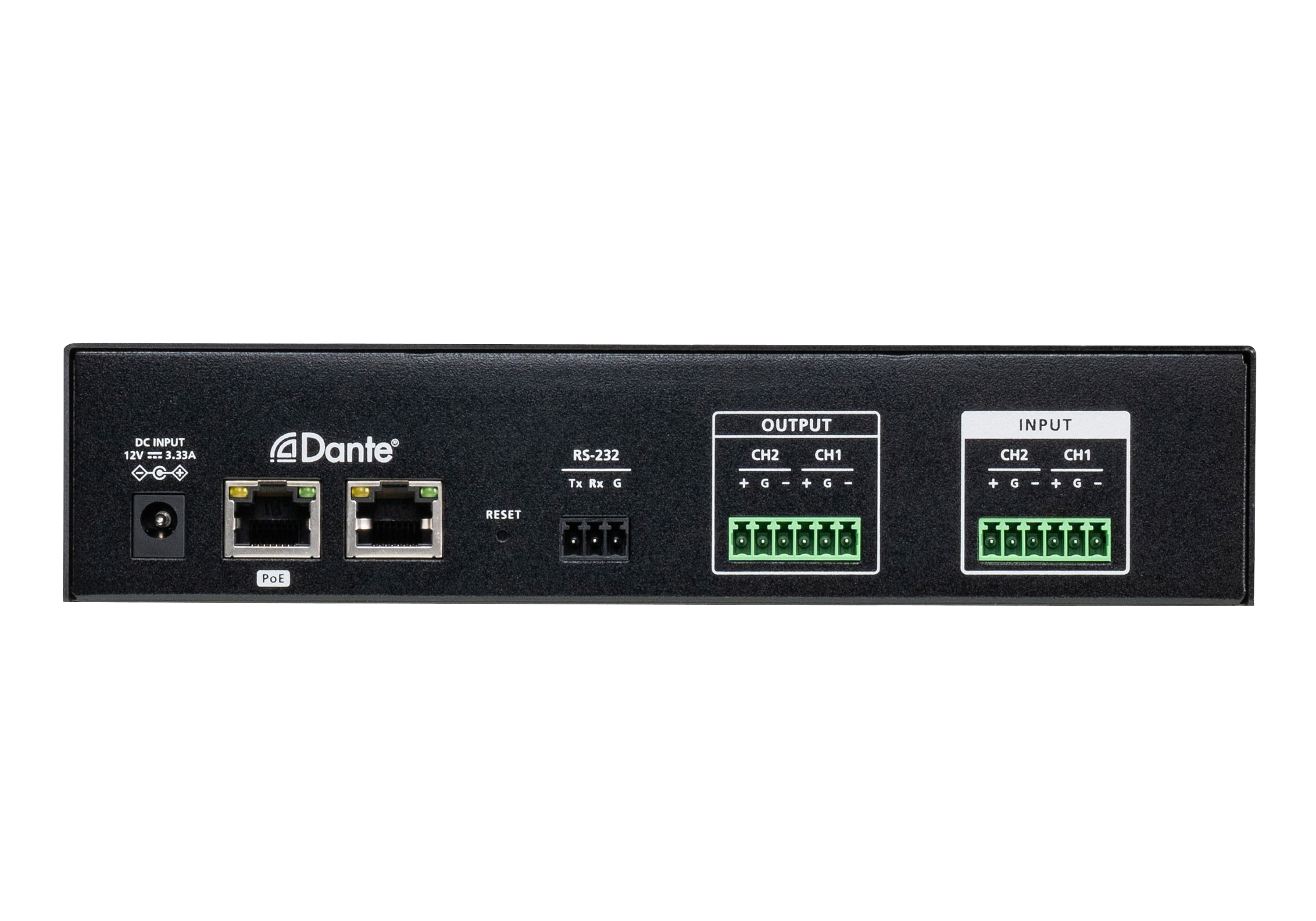

Control is over RS-232 (3-pin 3.5 mm terminal block) with an RJ45 Ethernet port for Dante and network control, and the unit can be powered over Ethernet to Class 0, IEEE802.3af. It is FCC, CE and UKCA marked, and the external power adapter is sold separately.

Available to order from TopAV with ATEN's standard 24-month product warranty.

Call 01342 580255

Key features

Frequency response

20~20kHz, +/-0.5dB

Distortion

THD+N: <0.01%, 1kHz, Max. Gain

Certification

FCC, CE, UKCA

Housing

Metal

Technical specifications

Connectivity

Maximum Input Level-30dBu

Gain Range (Line Inputs)Balanced: -8~+4dB; Unbalanced: -8~+10dB

Maximum Input Level (Line Inputs)+24dBu, Nominal Input Level: +4dBu

Impedance (Line Inputs)Balanced: 20kΩ; Unbalanced: 10kΩ

Maximum output Level+24dBu, Nominal Input Level: +4dBu

Impedance (Line Outputs)600Ω

Power & Physical

Weight0.92 kg ( 2.04 lb )

Dimensions (L x W x H)20.00 x 4.40 x 15.40 cm; (7.87 x 1.73 x 6.06 in.)

General

Gain Range0~+34dB

Impedance3kΩ

Phantom power+48V, Individual Control in Each Input Channel

DistortionTHD+N: <0.01%, 1kHz, Max. Gain

HousingMetal

Operating Temperature0~40℃

Storage Temperature-20~60℃

Call 01342 580255

Documents

ATEN AD202E datasheet (PDF, published by ATEN)
