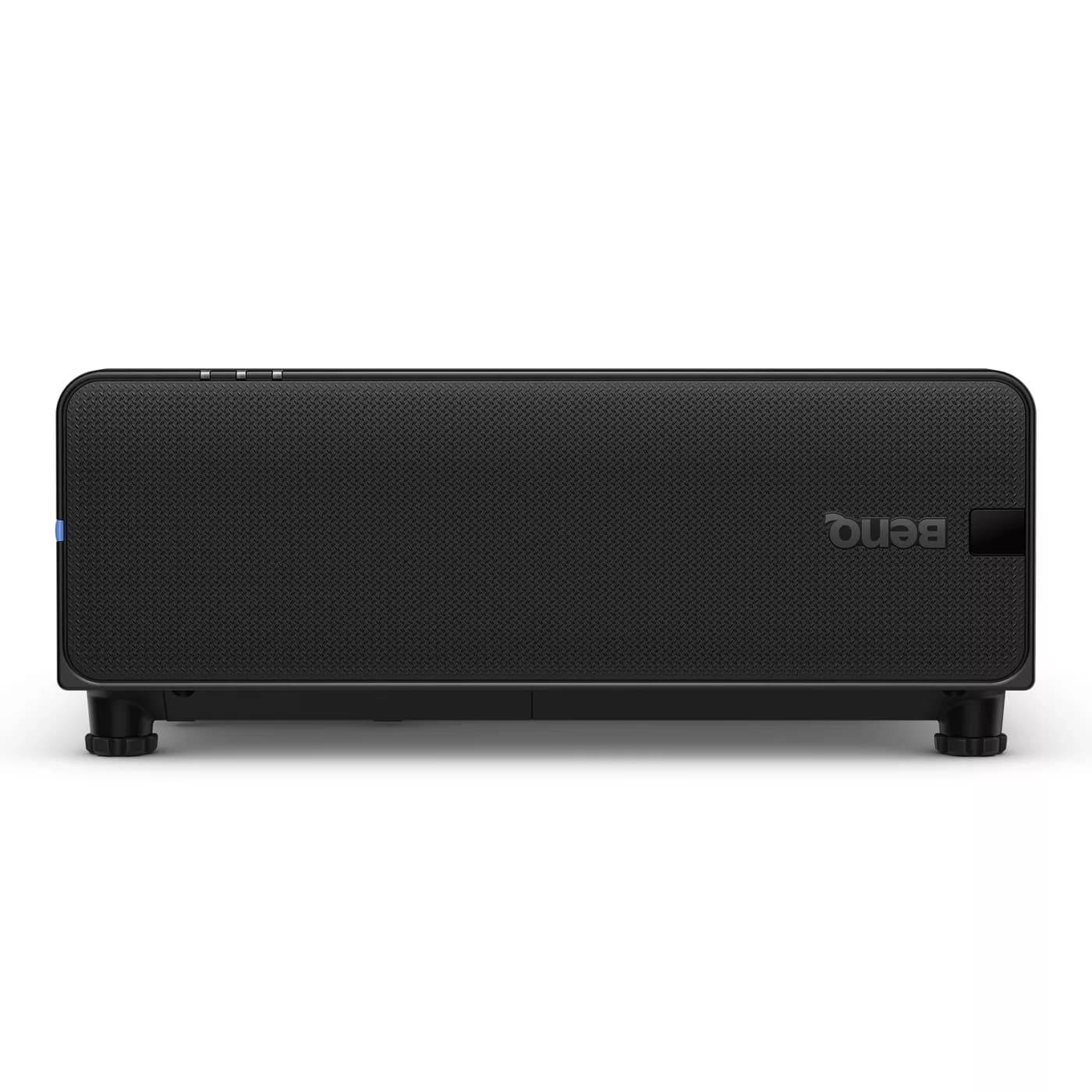

BenQ
BenQ LU895UST WUXGA 5,000-Lumen UST Projector
Brighter5,000 lm+500 lm
WUXGA5000 lmDLP
£3,503.60inc. VAT
Out of stock
Acer
Acer UL5630 WUXGA Ultra Short Throw Laser Projector
£2,618.27inc. VAT
£2,181.89 ex. VAT
Out of stock
1
- Visa
- Mastercard
- American Express
- PayPal
Seen it cheaper? We price-match genuine like-for-like quotes. How it works
Bought in the UK, backed in the UKWhy it matters →
- Sourced through UK distribution
- UK manufacturer warranty
- UK-based engineers
- No import duty or customs charges
- GBP pricing, UK VAT invoices
Key specifications
Projection TechnologyDLP
Light SourceLaser
Light Source Life20,000 hours (Standard), 30,000 hours (ECO)
Native ResolutionWUXGA (1920 x 1200)
Maximum Resolution3840 x 2160
Brightness4500 ANSI lumens (Standard), 3600 ANSI lumens (ECO)
Contrast Ratio2,000,000:1
Aspect Ratio16:10 native, 4:3 and 16:9 supported
Description
The Acer UL5630 is an ultra short throw laser projector: its 0.252 throw ratio puts an 87-inch image on the wall from just 0.1 m of lens-to-screen distance. That geometry removes shadowing and beam-in-the-eyes problems in classrooms, meeting rooms and exhibition stands where people stand in front of the screen.
Output is 4,500 ANSI lumens at native 1920 x 1200, with input support up to 3840 x 2160 and a 2,000,000:1 contrast ratio. The laser light source is rated at 20,000 hours in standard mode and 30,000 hours in ECO, and the projector supports all four projection orientations. Image sizes run from 70 inches to 150 inches.
Two 10 W speakers are built in. Security includes PIN code locking and a security bar. Power draw is 504 W in standard mode against 350 W in ECO. This is a substantial chassis at 429 x 389 x 158 mm and 7.7 kg, designed for permanent installation on a short-throw wall arm or a shelf close to the screen.
Key features
0.252 Ultra Short Throw
An 87-inch image from 0.1 m, with no shadowing for presenters.
4,500 ANSI Lumens
High output for an ultra short throw model.
30,000-Hour Laser
No lamp changes across the working life of the install.
2,000,000:1 Contrast
Strong black level for a laser projector at this brightness.
Technical specifications
Choose a section to view its specifications.
Display (5)
- Native Resolution
- WUXGA (1920 x 1200)
- Maximum Resolution
- 3840 x 2160
- Brightness
- 4500 ANSI lumens (Standard), 3600 ANSI lumens (ECO)
- Contrast Ratio
- 2,000,000:1
- Aspect Ratio
- 16:10 native, 4:3 and 16:9 supported
Audio (1)
- Speaker
- 2 x 10 W
Power & Physical (5)
- Image Size
- 70" (177.8 cm) to 150" (381 cm)
- Projection Offset (Half-Height)
- 144%
- Power Consumption
- 504 W (Standard), 350 W (ECO), 0.5 W (Standby)
- Dimensions (W x D x H)
- 429 x 389 x 158 mm
- Weight
- 7.7 kg
General (7)
- Projection Technology
- DLP
- Light Source
- Laser
- Light Source Life
- 20,000 hours (Standard), 30,000 hours (ECO)
- Throw Ratio
- 0.252 (87" @ 0.1 m)
- Lens
- F = f/2, f = 24.85 mm, manual focus
- Projection Modes
- Front, rear, ceiling, rear ceiling
- Security
- PIN code locking, security bar
Throw distance guide
With its 0.252:1 throw ratio, here's how far the projector needs to sit from the screen for common 16:10 image sizes. Try our throw distance calculator for your exact room.
Supported image: 70″ to 150″ diagonal
Try a size
100"
16:10 diagonal image
2.15 m × 1.35 m
Lens position
0.5 m
Side view: drag the projector to try its available lens positions
Position fits
| Image size | Image dimensions | Lens distance |
|---|---|---|
| 80" | 1.72 m × 1.08 m | 0.4 m |
| 100" | 2.15 m × 1.35 m | 0.5 m |
| 120" | 2.58 m × 1.62 m | 0.7 m |
| 150" | 3.23 m × 2.02 m | 0.8 m |
Planning from a real wall? Use the projector screen size calculator to upload a photo, preview the image to scale and find projectors that fit within your maximum available space. Replacing an existing projector? The projector replacement calculator checks whether this lens covers the ratio your current mount needs.
Distances are lens-to-screen, calculated from the manufacturer's stated throw ratio; allow for lens shift and mounting hardware. Always confirm against the manufacturer's installation guide before fixing mounts.
