iiyama

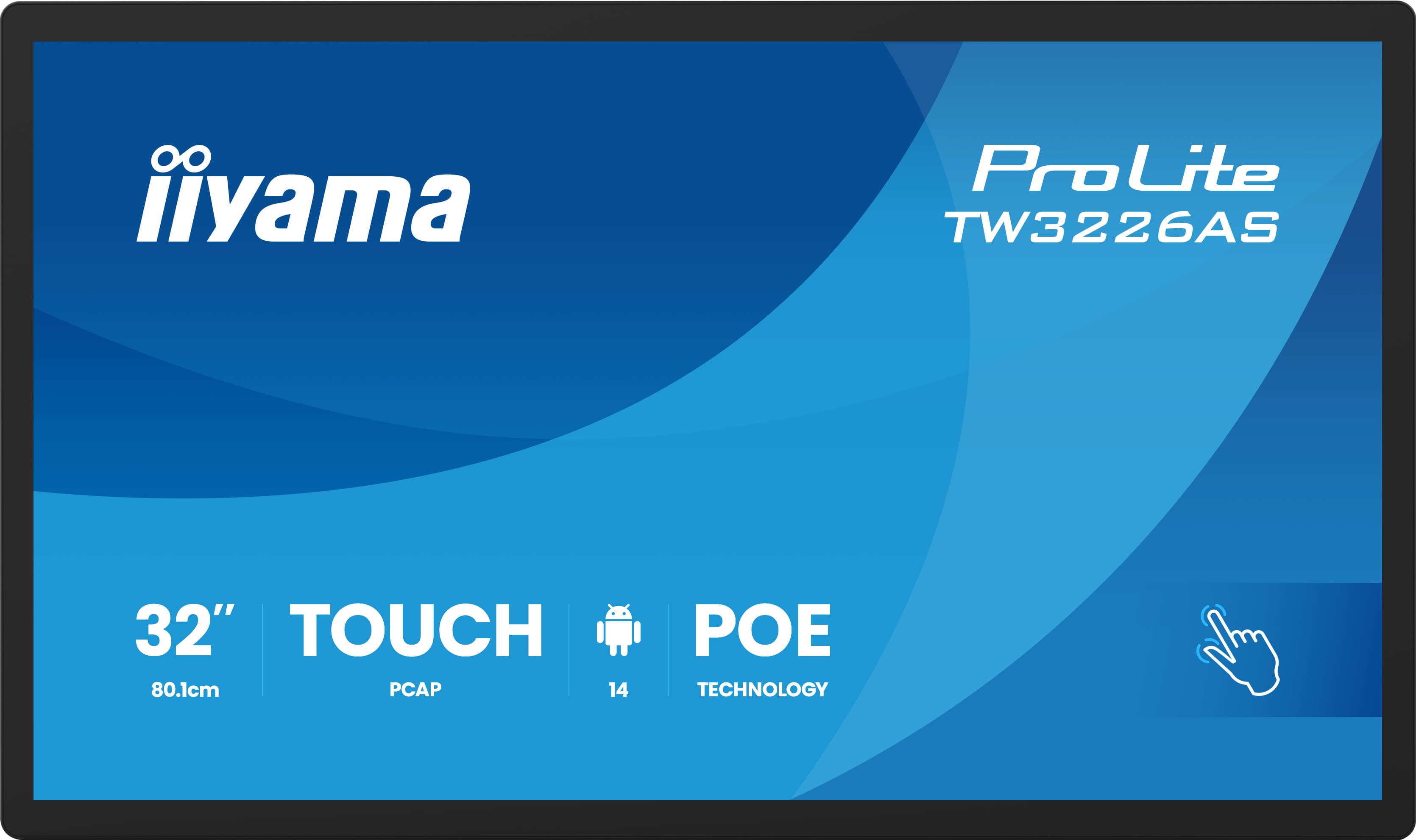

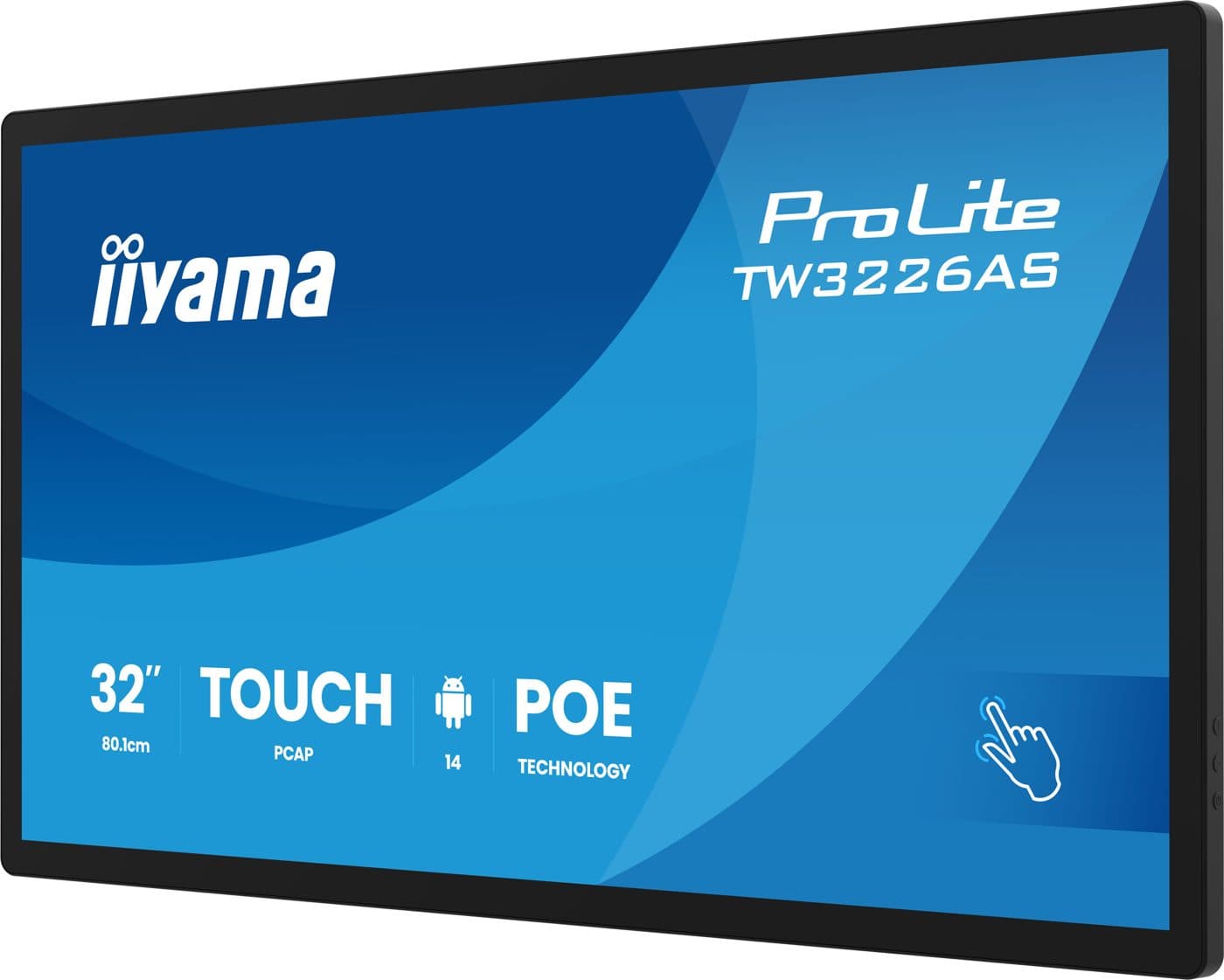

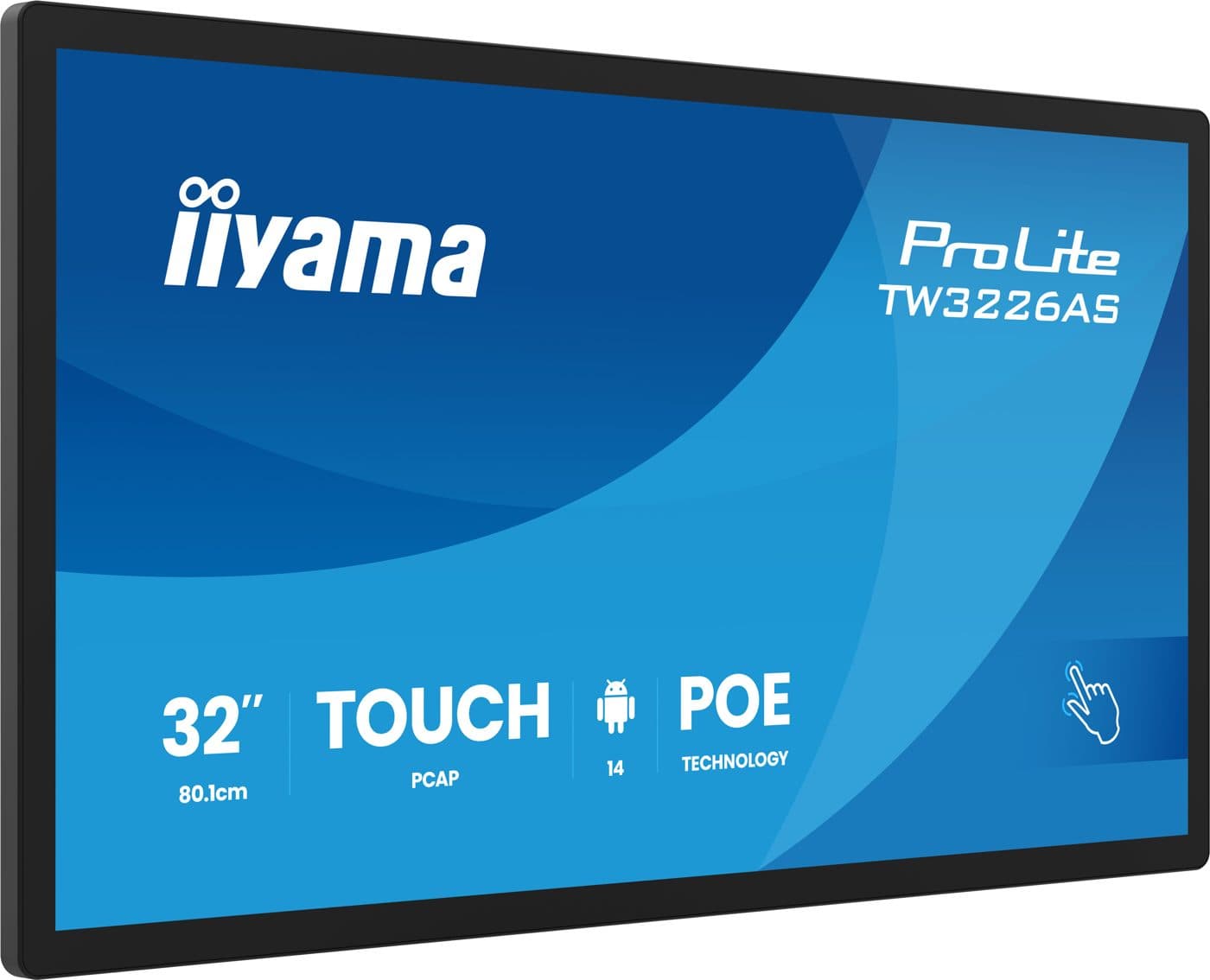

iiyama TW3226AS-B3P 31.5" Touch Panel PC

SKU TW3226AS-B3P
£538.80inc. VAT
£449.00 ex. VAT
Ask a question
Out of stock
Bought in the UK, backed in the UKWhy it matters →
  • Sourced through UK distribution
  • UK manufacturer warranty
  • UK-based engineers
  • No import duty or customs charges
  • GBP pricing, UK VAT invoices
Key specifications
DesignEdge to edge glass
Diagonal31.5", 80.1cm
PanelVA
Native resolution1920 x 1080 (2 megapixel HD)
Aspect ratio16:9
Panel brightness500 cd/m²
Brightness430 cd/m² with touch
Static contrast4000:1 with touch

Choose a Mount

Video Conferencing

Professional Installation

Want it installed by our AV experts? We offer professional on-site installation including mounting, cable management, and system configuration.

Your Configuration
iiyama TW3226AS-B3P 31.5" Touch Panel PC × 1£538.80
Total£538.80
inc. VAT
1

This item is currently out of stock. Please check back soon or contact us.

Request a QuoteTalk to an Expert

Description

ProLite TW3226AS-B3P 31.5” PCAP 10pt touchscreen PC with Android, PoE technology and iiSignage² The ProLite TW3226AS-B3P is a smart and intuitive 31.5" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables.With a built-in quad microphone and 5W speakers, the TW3226AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage², iiyama’s Content Management System (CMS), giving you full control over y

Technical specifications

DesignEdge to edge glass
Diagonal31.5", 80.1cm
PanelVA
Native resolution1920 x 1080 (2 megapixel HD)
Aspect ratio16:9
Panel brightness500 cd/m²
Brightness430 cd/m² with touch
Static contrast4000:1 with touch
Response time (GTG)8ms
Viewing zonehorizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support16.7mln 8bit
Viewable area W x H698.4 x 392.8mm, 27.4 x 15,4"
Pixel pitch0.3637mm
Bezel colour and finishblack, matte
Touch technologyprojective capacitive
Touch points10 (HID, only supported by integrated OS, external OS only support single touch)
Touch methodfinger, glove (latex), capacitive stylus
Touch interfaceUSB
Supported operating systemsAll iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Digital signal inputHDMI x1 (HDMI, 1920x1080 @60Hz)
Audio outputSpeakers 2 x 5W
HDCPyes
USB portsx3 (1x v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA), 1x 2.0 (DC5V, 500mA), 1x USB-C (DC5V, 900mA (video output only, touch board function))
RJ45 (LAN)x1 (PoE - IEEE802.3bt/85W)
Microphonex1 (Standard Quad Microphone)
Integrated softwareAndroid 14
CPURockchip RK3576 Octa-core A72*4 + A53*4 up to 2.2GHz
GPUARM-G52 MC3
Storage32GB eMMC
Memory4GB LPDDR4X
WiFiIEEE802.11ax/ac/a/b/g/n
Bluetooth5.3
ExtraAuto-rotation, anti-glare coating, PoE
Kiosk modeyes
Max. non-stop operating time24/7
Glass hardness3H
Control buttonsPower switch, volume/ button +, volume/ button -
ApplicationsApplications: lock application, manage restart time, manage power on/off time, calculator, calendar, Chrome, alarm/clock/timer/stopwatch, manage files & folders, organize albums, Gmail, Google, iiSignage², play audio files, Play store, system peferences, sound recorder, play video
Flicker freeyes
Orientationlandscape, portrait, face-up
VESA mounting100 x 100mm
Cable management systemyes
MTBF50000 hours
Cablespower
Guidesquick start guide, safety guide
OtherAC adapter, wall mount (cover, cover screws, plugs) + screws, eva pads, spirit level
Cable coveryes
Power supply unitexternal
Power supplyDC 12 V
Power usage36.34W typical, 0.5W stand by, 0.3W off mode
RegulationsCE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
REACH SVHCabove 0.1%: Lead
Product dimensions W x H x D735 x 436 x 35mm
Box dimensions W x H x D833 x 508 x 126mm
Weight (without box)7.7kg
Weight (with box)12.4kg
EAN code4948570125708
User manualTW3226AS-B3P-usermanual-e_revD.pdf
Technical specificationProLite TW3226AS-B3P - gb_en.pdf
DrawingTW3226AS drawing.pdf
InstructionsTW series API Setup instructions_20251001.zip
CETW3226 CE DoC.pdf
