TopAV
Home / Installation & Large-Venue Projectors / Epson EB-L530U data projector Standard throw projector 5200 ANSI lumens 3LCD WUXGA (1920x1200) White
Epson

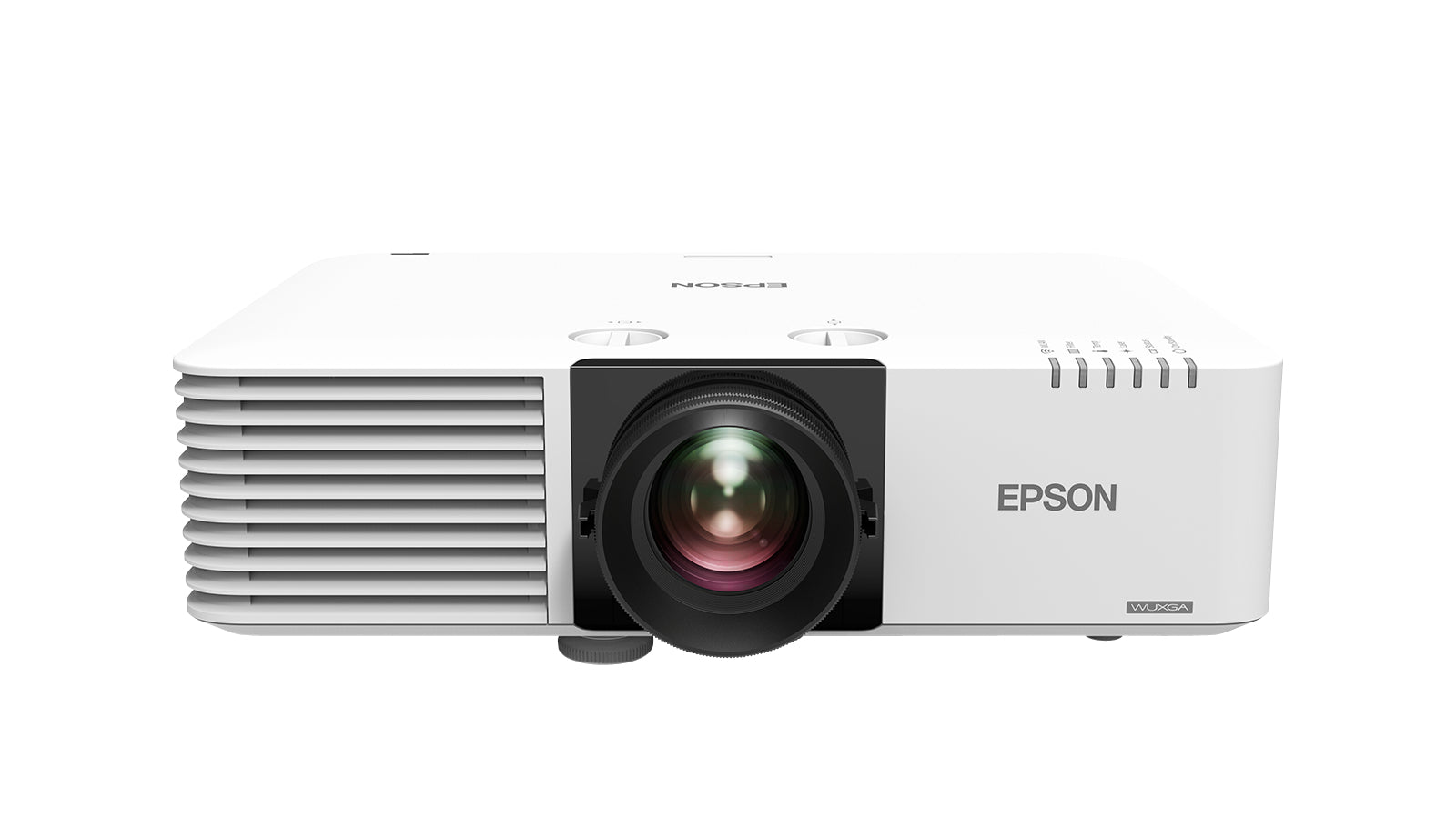

Epson EB-L530U data projector Standard throw projector 5200 ANSI lumens 3LCD WUXGA (1920x1200) White

SKU SHP-15753527394648
4.5 (38)
Key specifications
Number of colours1.07 billion colours
Projector native resolutionWUXGA (1920x1200)
Projection distance (wide)1.4 - 14.8 m
Projection distance (tele)2.4 - 23.8 m
Native aspect ratio16:10
Screen size compatibility1270 - 12700 mm (50 - 500")
Projection distance1.44 - 23.84 m
Contrast ratio (typical)2500000:1
£1,490.22ex. VAT
£1,788.26 inc. VAT
Ask a question
In stock — dispatched within 2 working days
1
Request a Quote
Est. delivery 25 Aug - 29 Aug
Free return within 14 days
Installation services availablePurchase orders accepted

Description

As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with even smaller and more compact display solutions. The EB-L530U delivers even more effective, practical and creative display applications across a number of different industries.

Key features

Bright, cost-effective display solutions

Providing bolder, brighter, more engaging and impactful displays even in brightly-lit environments, the EB-L530U offers impressive 5,200-lumen brightness and WUXGA Full HD resolution at an affordable price. This means that users can upgrade to laser performance and reliability, with reduced power consumption, without paying a premium. It also features: 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments. The EB-L530U is capable of up to 500-inch displays, without any reduction in clarity or vivid detail.

Enhanced connectivity

This display solution offers many different ways to connect, show multiple sources simultaneously and present wirelessly. The EB-L530U comes equipped with futureproofed connectivity options including HDMI and HDBaseT with 4K signal support, 5GHz wireless with enterprise security, upgraded Miracast, built-in media player and support for Epson’s ELPWP10 wireless presentation system.

Technical specifications

Display
Projector native resolutionWUXGA (1920x1200)
Native aspect ratio16:10
Screen size compatibility1270 - 12700 mm (50 - 500")
Contrast ratio (typical)2500000:1
Projector brightness (economic mode)3640 ANSI lumens
Projector brightness5200 ANSI lumens
Built-in displayNo
Connectivity
HDMI connector typeFull-size
HDBaseT portYes
USB 2.0 Type-B ports quantity1
VGA (D-Sub) ports quantity2
HDMI ports quantity3
Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
DVI portNo
Ethernet LANYes
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Software supportvia: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
WLAN adapter includedYes
Supported network protocolsHTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Audio
Service life of light source (economic mode)30000 h
Built-in speaker(s)Yes
Number of built-in speakers1
PC Audio outYes
PC Audio inYes
Noise level (economic mode)23 dB
Power & Physical
Matrix size1.7 cm (0.67")
Product colourWhite
Power consumption (typical)293 W
Power consumption (standby)0.3 W
Power consumption (economy mode)223 W
Package width540 mm
Package depth565 mm
Package height210 mm
Package weight12 kg
Weight8.2 kg
Width440 mm
Depth339 mm
Height136 mm
Certifications & Warranty
Sustainability certificatesTCO
Warranty cardYes
General
Number of colours1.07 billion colours
Projection distance (wide)1.4 - 14.8 m
Projection distance (tele)2.4 - 23.8 m
Projection distance1.44 - 23.84 m
Zoom ratio1.6:1
Zoom capabilityYes
Keystone correction, vertical-30 - 30°
Keystone correction, horizontal-30 - 30°
Projection technology3LCD
Zoom typeManual
Smart projectorNo
Light source typeLaser
Service life of light source20000 h
FocusManual
Focal length range20 - 31.8 mm
Aperture range (F-F)1.5 - 1.7
Horizontal lens shift range-20 - 20%
Vertical lens shift range-50 - 50%
Throw ratio1.35 - 2.2:1
Video processing10 bit
Video colour modesCinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
Full HDYes
RMS rated power10 W
Serial interface typeRS-232C
AC (power) inYes
Smart TVNo
MiracastYes
Card reader integratedNo
Noise level31 dB
HDCPYes
Products per pallet14 pc(s)
Quantity per pack1 pc(s)
Products per pallet (UK)14 pc(s)
Market positioningPresentation
Password protectionYes
InteractiveNo
Country of originPhilippines
Product typeStandard throw projector
Cable lock slot typeKensington
Cable lock slotYes
PlacementCeiling, Desktop
Power sourceAC
Harmonized System (HS) code85286200
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-10 - 60 °C
Storage relative humidity (H-H)10 - 90%
Remote control includedYes
ManualYes
Cables includedAC
Batteries includedYes
